Nutone QTREN080FL Exhaust Fan

Model: QTREN080FL


product name

Popular Parts

Popular Parts


Nutone QTREN080FL

...
...
XX
Motor Assembly (Replaced S97017850 & S97017855) BRO-S97020049

...
xx
Night Light BRO-S99271426

...
1
Hanger Bar Kit BRO-SQTHB1

...
1

...
2
Damper/Duct Connector - 4" BRO-S97016449

...
3
Grille Spring - 2 Required BRO-S99140199

...
3
Wiring Plate BRO-S98010102

...
4
Sheet Metal Screw 8-18 X .375 BRO-S99170245

...
5
Wire Panel/Harness Assy BRO-S97016585

...
6
Blower Wheel - 8" X 2 3/4", Ccw, Black Plastic Version 1 BRO-S99020284

...
7
Blower Assembly - (See 97020048) BRO-S97017850

...
7
Motor Assembly Motor/Blade/Flat Bracket Current Version 2 BRO-S97020048

...
8
Rubber Mount Isolator (4 Required) BRO-S99100491

...
9
Motor Plate BRO-S97016468

...
9
Washers 8 X .625 - 4 Required BRO-S99250959

...
10
Nut 8-32 F/ Attaching Motor - 4 Req. BRO-S99260558

...
12
Grille Lens Spring Assembly(Version2 Rectangle Lens) BRO-S97018274

...
13
Spring Grille (2 Required) BRO-S99140199

...
14
Lens(Version 2 Rectangle Shape) BRO-S99111401

...
14
Lens (Version 1 Kidney Shape) BRO-S99111310

...
14
I-Joist Spacer Block (Contains 2) BRO-S97018014

...
15
Bulb Flourcent Gu24-18Watt(2 Required Sold Seperate) BRO-S99271381

...
15
Ballast With Plugs For Fluorescent Bulb 5 Pin BRO-S97016568

...
15
18 Watt Fluorescent Bulb - 2 Pin BRO-S99271311

...
16
Ballast Assy BRO-S97016618

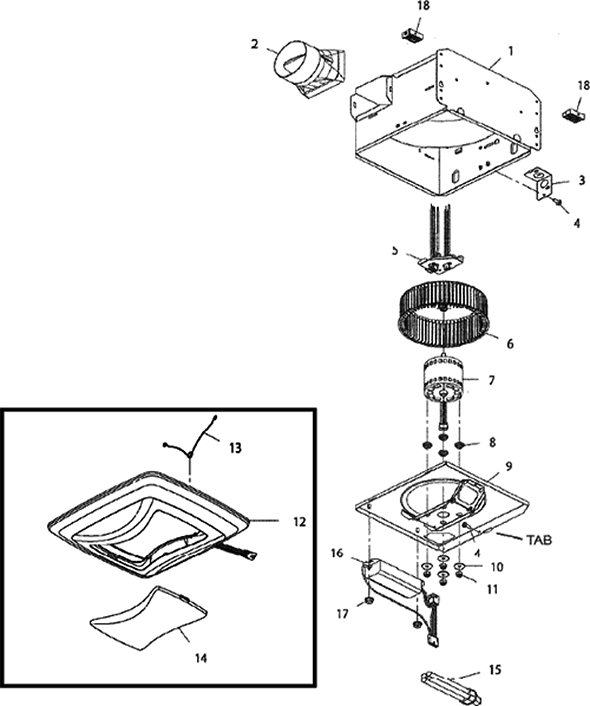

Schematic Image Zoomed
