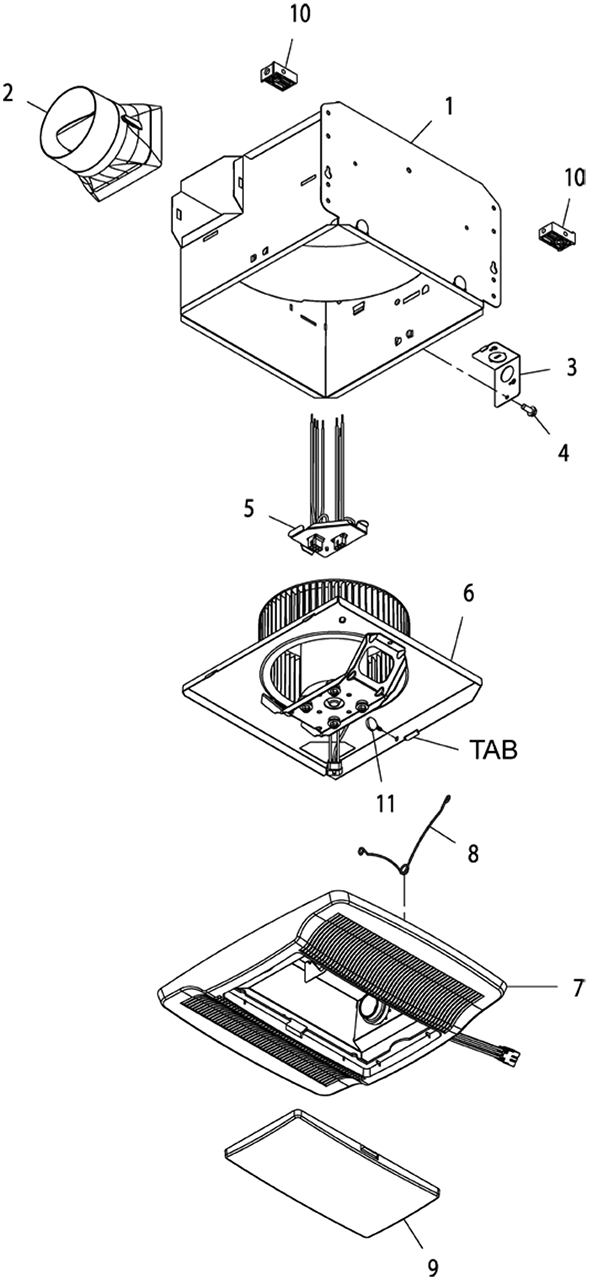

Nutone QTN80L Exhaust Fan

Model: QTN80L

Save Part Not Listed?
product name

Nutone QTN80L

...
...
1
Housing BRO-97016466
...
2
Duct Connector-4" BRO-97016449
...
3
Wiring Plate BRO-98010102
...
4
Screw, 8-18 X .375 BRO-99170245
...
5
Wire Panel/Harness Assembly BRO-97018011
...
6
Blower Assembly BRO-97016621
...
7
Grille Assembly (Includes Key Nos. 8 & 9) BRO-97016543
...
8
Grille Spring (2 Req'D) BRO-99140199
...
9
Lens BRO-99111281
...
10
Spacer (2 Supplied) BRO-97018014
...
11
Thumbscrew, 8-18 X .375 BRO-99420665
