Nutone QTN130LE Exhaust Fan

Model: QTN130LE

Save Part Not Listed?
product name

Popular Parts

Popular Parts

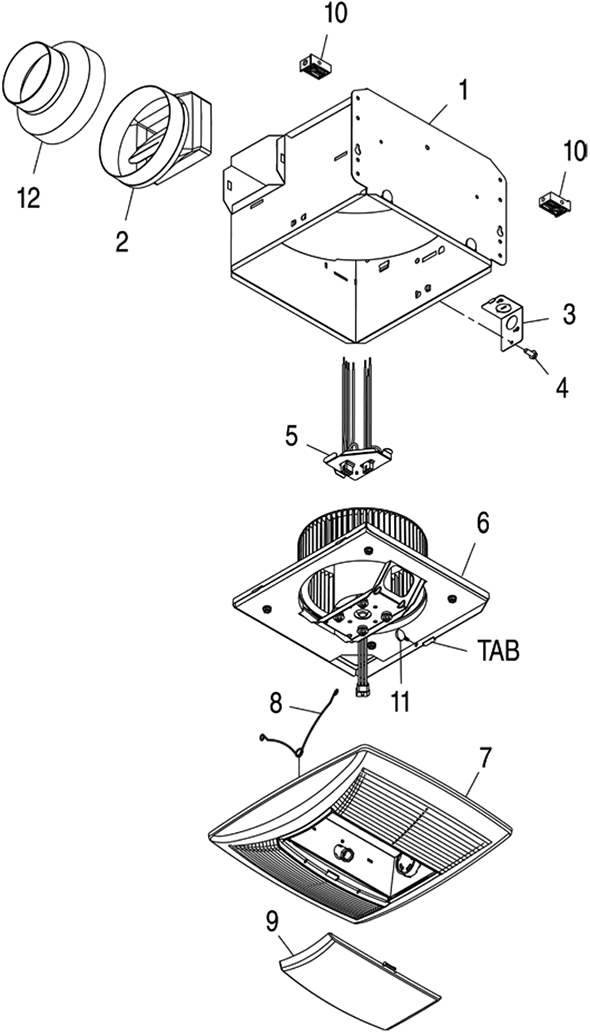

Nutone QTN130LE

...
...
xx
Bulb, Gu24, 18W Fluorescent (2 Req.) BRO-99271381
...
1
Housing BRO-97016466
...
2
Duct Connector - 6" BRO-97018562
...
3
Wiring Plate BRO-98010102
...
4
Screw, 8-18 X .375 BRO-99170245
...
5
Wire Panel/Harness Assembly BRO-97018011
...
6
Blower Assembly BRO-97016591
...
7
Grille Assembly (Includes Key Nos. 8 & 9) BRO-97018428
...
8
Grille Spring (2 Req'D) BRO-99140199
...
9
Lens BRO-99111512
...
10
Spacer (2 Supplied) BRO-97018014
...
11
Thumbscrew, 8-18 X .375 BRO-99420665
...
12
Duct Reducer - 6" To 4" BRO-475
