Nutone QT500 Exhaust Fan

Model: QT500

Save Part Not Listed?
product name

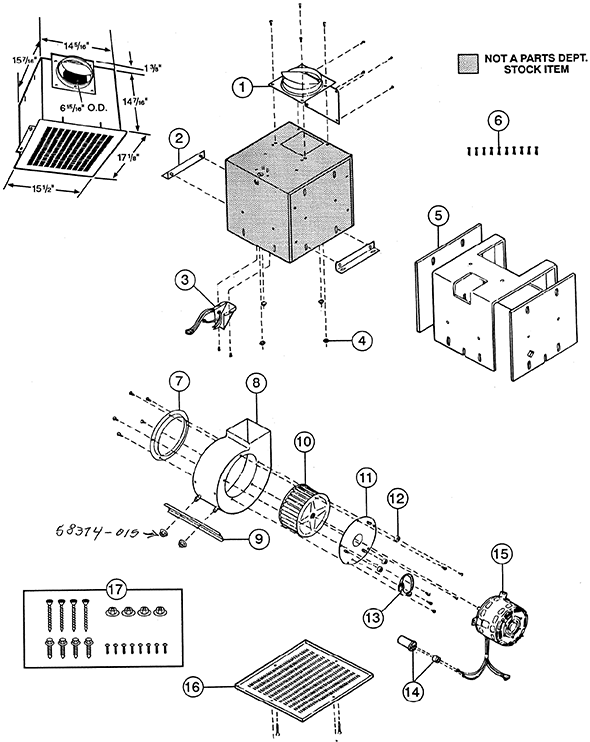

Nutone QT500

...
...
1
Duct And Louver Assembly BRO-36809000
...
1
Duct And Louver Assembly BRO-36809-000
...
2
Hanger Bracket Assembly (1) - 2 Required BRO-58731-000
...
2
Hanger Bracket Assembly (1) - 2 Required BRO-58731000
...
3
Junction Box Assembly W/Plug & Wires BRO-58739-000
...
3
Junction Box Assembly W/Plug & Wires BRO-58739000
...
4
Speed Nut - Holds Grille (1) - 4 Required BRO-18218000
...
4
Speed Nut - Holds Grille (1) - 4 Required BRO-18218-000
...
5
Insulation Set BRO-2894A-000
...
5
Insulation Set BRO-2894A000
...
6
Retainer - Insulation (1) -10 Required BRO-58597-000
...
6
Retainer - Insulation (1) -10 Required BRO-58597000
...
7
Inlet Flange BRO-36441-000
...
7
Inlet Flange BRO-36441000
...
8
Blower Housing Assembly BRO-36480-000
...
8
Blower Housing Assembly BRO-36480000
...
9
Mounting Bar BRO-36806000
...
9
Mounting Bar BRO-36806-000
...
10
Blower Wheel - C.C.W. BRO-36449000
...
10
Blower Wheel - C.C.W. BRO-36449-000
...
11
Cover Plate Assembly BRO-36801000
...
11
Cover Plate Assembly BRO-36801-000
...
12
Shock Mount (1) - 3 Required BRO-36805000
...
12
Shock Mount (1) - 3 Required BRO-36805-000
...
13
Mounting Strap - Capacitor BRO-37996000
...
13
Mounting Strap - Capacitor BRO-37996-000
...
14
Capacitor W/Boot - 5 Mt. 370V BRO-2893A000
...
14
Capacitor W/Boot - 5 Mt. 370V BRO-2893A-000
...
15
Motor BRO-36804-000
...
15
Motor BRO-36804000
...
16
Grille - White BRO-36456-206
...
16
Grille - White BRO-36456206
...
17
Hardware Bag Assembly BRO-36156-000
...
17
Hardware Bag Assembly BRO-36156000
