Nutone QT200 Exhaust Fan

Model: QT200

Save Part Not Listed?
product name

Nutone QT200

...
...
1
Grille And Springs Assembly BRO-58732000
...
1
Grille And Springs Assembly BRO-58732-000
...
2
Torsion Spring - 2 Required BRO-0447A-000
...
2
Torsion Spring - 2 Required BRO-0447A000
...
3
Blower Assembly BRO-58818-000
...
3
Blower Assembly BRO-58818000
...
4
Venturi Plate BRO-58826000
...
4
Venturi Plate BRO-58826-000
...
5
Blower Wheel Cw BRO-58825-000
...
5
Blower Wheel Cw BRO-58825000
...
5
Blower Wheel Ccw BRO-58824000
...
5
Blower Wheel Ccw BRO-58824-000
...
8
Motor Plate - 2 Required BRO-65905-005
...
8
Motor Plate - 2 Required BRO-65905005
...
9
Motor Mount - 2 Required BRO-19360-000
...
9
Motor Mount - 2 Required BRO-19360000
...
10
Motor BRO-58822000
...
10
Motor BRO-58822-000
...
11
Clamp Rod Assembly BRO-58835000
...
11
Clamp Rod Assembly BRO-58835-000
...
12
Plug Housing BRO-58723000
...
12
Plug Housing BRO-58723-000
...
13
Outlet Box BRO-58724000
...
13
Outlet Box BRO-58724-000
...
14
Wrap Around Insulation BRO-58595000
...
14
Wrap Around Insulation BRO-58595-000
...
15
End Insulation - 2 Required BRO-58596-000
...
15
End Insulation - 2 Required BRO-58596000
...
16
Hanger Bracket - 2 Required BRO-58731-000
...
16
Hanger Bracket - 2 Required BRO-58731000
...
17
Insulation Retainer -4 Required BRO-58597-000
...
17
Insulation Retainer -4 Required BRO-58597000

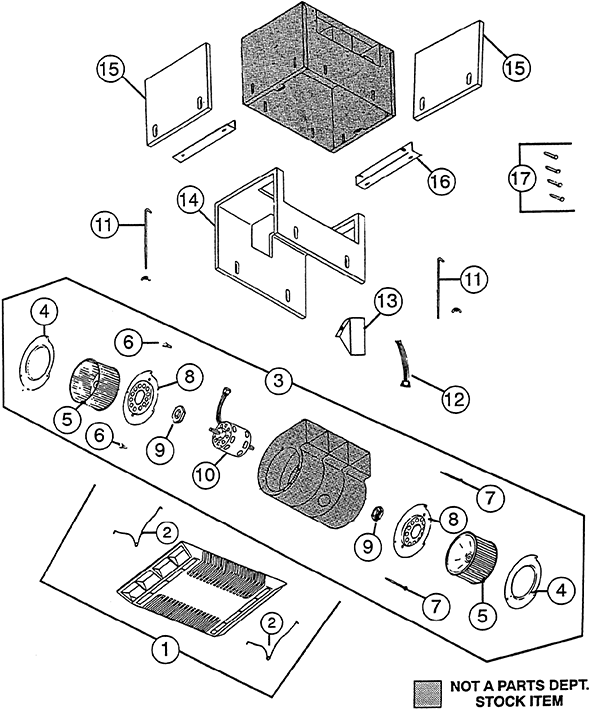

Schematic Image Zoomed
