Nutone QT140L Exhaust Fan

Model: QT140L

Save Part Not Listed?
product name

Nutone QT140L

...
...
1
Bezel Assembly - Bezel With Lens BRO-35754000
...
1
Bezel Assembly - Bezel With Lens BRO-35754-000
...
2
Lens BRO-35756-000
...
2
Lens BRO-35756000
...
3
Bezel BRO-35755-000
...
3
Bezel BRO-35755000
...
4
Reflector BRO-35757000
...
4
Reflector BRO-35757-000
...
5
Night Light Lamp Socket BRO-35759-000
...
5
Night Light Lamp Socket BRO-35759000
...
6
Lamp Socket - 100 Watt BRO-35758-000
...
6
Lamp Socket - 100 Watt BRO-35758000
...
7
Grille BRO-35752-000
...
7
Grille BRO-35752000
...
8
Blower And Motor Assembly BRO-35730-000
...
8
Blower And Motor Assembly BRO-35730000
...
9
Motor - Without Nuts, See Ref. No. 12 BRO-35738000
...
9
Motor - Without Nuts, See Ref. No. 12 BRO-35738-000
...
10
Gasket BRO-11415000
...
10
Gasket BRO-11415-000
...
11
Scroll Housing Assy - L.H. For Ccw Blower Wheel BRO-35731-005
...
11
Scroll Housing Assy - R.H. For Cw Blower Wheel BRO-35735-005
...
11
Scroll Housing Assy - R.H. For Cw Blower Wheel BRO-35735005
...
11
Scroll Housing Assy - L.H. For Ccw Blower Wheel BRO-35731005
...
12
Grommet Nut Set (4) - For Motor BRO-0463A-000
...
12
Grommet Nut Set (4) - For Motor BRO-0463A000
...
13
Blower Wheel - Ccw BRO-35740-000
...
13
Blower Wheel - Cw BRO-35739-000
...
13
Blower Wheel - Cw BRO-35739000
...
13
Blower Wheel - Ccw BRO-35740000
...
14
Plug Receptacle (1) - 2 Required BRO-10034-000
...
14
Plug Receptacle (1) - 2 Required BRO-10034000
...
15
Plug Housing Assembly BRO-58723-000
...
15
Plug Housing Assembly BRO-58723000
...
16
Hanger Bracket Assembly (1) - 2 Required BRO-58731000
...
16
Hanger Bracket Assembly (1) - 2 Required BRO-58731-000
...
17
Insulation End (1) - 2 Required BRO-58596-000
...
17
Insulation End (1) - 2 Required BRO-58596000
...
18
Rod Clamp Assembly (1) - 2 Required BRO-35741000
...
18
Rod Clamp Assembly (1) - 2 Required BRO-35741-000
...
19
Junction Box BRO-35728000
...
19
Junction Box BRO-35728-000
...
20
Insulation Wraparound BRO-35729-000
...
20
Insulation Wraparound BRO-35729000
...
21
Duct And Louver Assembly BRO-19749-000
...
21
Duct And Louver Assembly BRO-19749000
...
22
Insulation Retainer BRO-58597-000
...
22
Insulation Retainer BRO-58597000
...
23
Grille Screws BRO-95144-000
...
23
Hardware Bag (Not Shown) BRO-58733-000
...
23
Grille Screws BRO-95144000
...
23
Hardware Bag (Not Shown) BRO-58733000

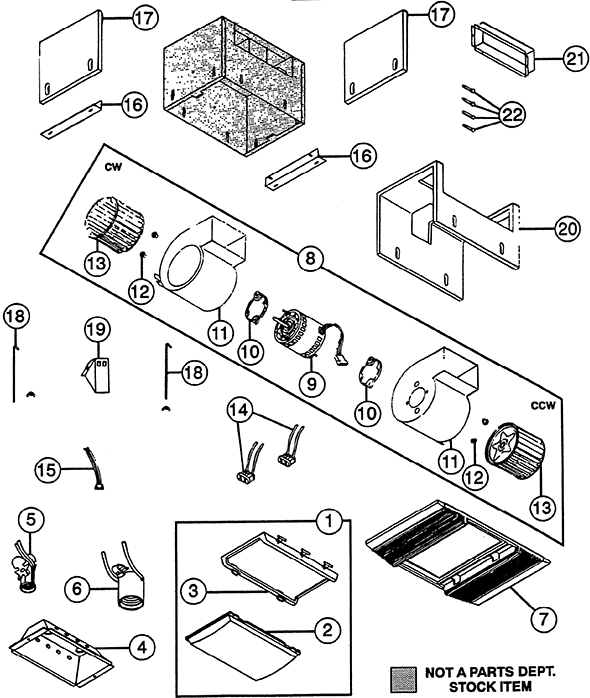

Schematic Image Zoomed
