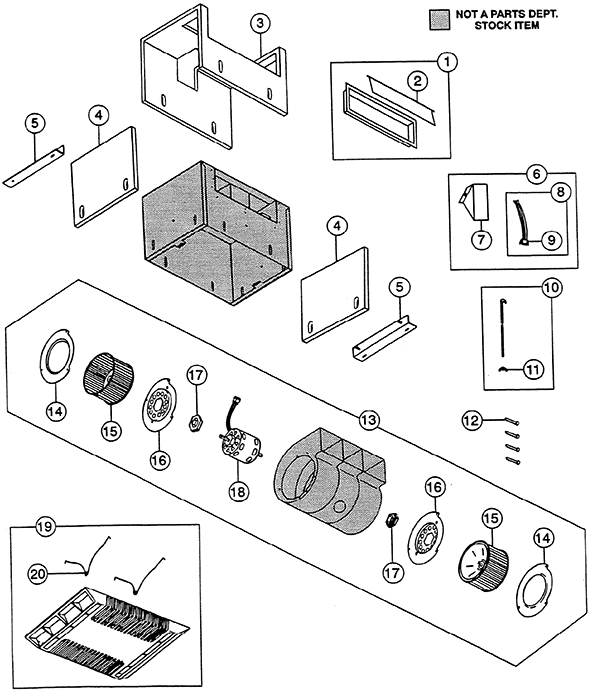

Nutone QT130 Exhaust Fan

Model: QT130

Save Part Not Listed?
product name

Nutone QT130

...
...
xx
Hardware Bag Assembly (Not Shown) - See Note BRO-58733000
...
xx
Hardware Bag Assembly (Not Shown) - See Note BRO-58733-000
...
xx
Bearing - Nylon (Not Shown) BRO-51101-000
...
xx
Screw - 8-18 X 3/8 Ph Hex Wash. "A" (Not Shown) BRO-28031-015
...
xx
Ground Screw (Not Shown) BRO-L3236-000
...
xx
Terminal Ring (Not Shown) BRO-66018-000
...
xx
Grommet (Not Shown) BRO-02923-000
...
xx
Plug Button (Not Shown) - 2 Required BRO-66477-000
...
xx
Bearing - Nylon (Not Shown) BRO-51101000
...
xx
Screw - 8-18 X 3/8 Ph Hex Wash. "A" (Not Shown) BRO-28031015
...
xx
Ground Screw (Not Shown) BRO-L3236000
...
xx
Plug Button (Not Shown) - 2 Required BRO-66477000
...
xx
Grommet (Not Shown) BRO-02923000
...
xx
Terminal Ring (Not Shown) BRO-66018000
...
1
Duct And Lower Assembly BRO-19749000
...
1
Duct And Lower Assembly BRO-19749-000
...
2
Lower Assembly BRO-67150000
...
2
Lower Assembly BRO-67150-000
...
3
Insulation - Wrap Around BRO-35729000
...
3
Insulation - Wrap Around BRO-35729-000
...
4
Insulation - End - 2 Required BRO-58596-000
...
4
Insulation - End - 2 Required BRO-58596000
...
5
Hanger Bracket Assembly -2 Required BRO-58731000
...
5
Hanger Bracket Assembly -2 Required BRO-58731-000
...
6
Junction Box Assembly BRO-58739000
...
6
Junction Box Assembly BRO-58739--000
...
7
Junction Box BRO-58724000
...
7
Junction Box BRO-58724-000
...
8
Plug Housing Assembly BRO-58723000
...
8
Plug Housing Assembly BRO-58723-000
...
9
Plug Housing - Socket BRO-1259A000
...
9
Plug Housing - Socket BRO-1259A-000
...
10
Rod - Clamp Assembly - 2 Required BRO-58835-000
...
10
Rod - Clamp Assembly - 2 Required BRO-58835000
...
11
Wing Nut -10-24 -2 Required BRO-65916-000
...
11
Wing Nut -10-24 -2 Required BRO-65916000
...
12
Insulation Retainer - 4 Required BRO-58597000
...
12
Insulation Retainer - 4 Required BRO-58597-000
...
13
Blower Assembly BRO-44154000
...
13
Blower Assembly BRO-44154-000
...
14
Venturi - 2 Required BRO-58826000
...
14
Venturi - 2 Required BRO-58826-000
...
15
Blower Wheel- C.W. BRO-58825-000
...
15
Blower Wheel-C.C.W. BRO-58824-000
...
15
Blower Wheel-C.C.W. BRO-58824000
...
15
Blower Wheel- C.W. BRO-58825000
...
16
Motor Plate - 2 Required BRO-65905005
...
16
Motor Plate - 2 Required BRO-65905-005
...
17
Motor Mount - Hex- 2 Required BRO-19360-000
...
17
Motor Mount - Hex- 2 Required BRO-19360000
...
18
Motor BRO-44155000
...
18
Motor BRO-44155-000
...
19
Grille And Spring Assembly BRO-58732000
...
19
Grille And Spring Assembly BRO-58732-000
...
20
Torsion Spring -Set Of 2 BRO-0447A000
...
20
Torsion Spring -Set Of 2 BRO-0447A-000
