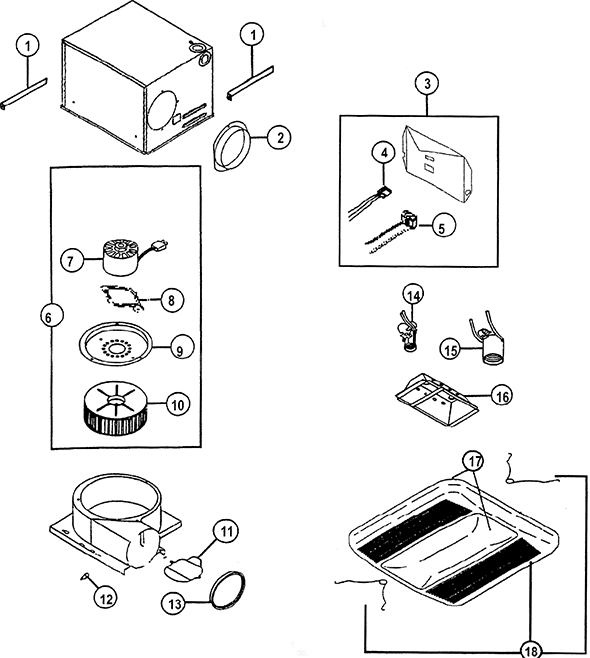

Nutone QT100L Exhaust Fan

Model: QT100L

Save Part Not Listed?
product name

Nutone QT100L

...
...
1
Hanger Bar BRO-44388000
...
1
Hanger Bar BRO-44388-000
...
2
Transition BRO-26572-000
...
2
Transition BRO-26572000
...
3
Outlet Box Assy. BRO-85035-000
...
3
Outlet Box Assy. BRO-85035000
...
4
Light Receptacle BRO-36892000
...
4
Light Receptacle BRO-36892-000
...
5
Fan Receptacle BRO-10034-000
...
5
Fan Receptacle BRO-10034000
...
6
Power Unit Assy. BRO-0696B-000
...
6
Power Unit Assy. BRO-0696B000
...
7
Motor BRO-86322-000
...
7
Motor BRO-86322000
...
8
Motor Isolation Mount BRO-32787-000
...
8
Motor Isolation Mount BRO-32787000
...
9
Motor Mounting Bracket BRO-65071000
...
9
Motor Mounting Bracket BRO-65071-000
...
10
Blower Wheel BRO-5901A000
...
10
Blower Wheel BRO-5901A-000
...
11
Louver BRO-65060000
...
11
Louver BRO-65060-000
...
12
Bumper BRO-27538000
...
12
Bumper BRO-27538-000
...
13
Gasket BRO-26572000
...
13
Gasket BRO-26572-000
...
14
Lamp Socket - Nite Lite BRO-85041-000
...
14
Lamp Socket - Nite Lite BRO-85041000
...
15
Lamp Socket BRO-85042-000
...
15
Lamp Socket BRO-85042000
...
16
Reflector BRO-85037-206
...
16
Reflector BRO-85037206
...
17
Grille & Lens Assy. BRO-85948-000
...
17
Grille & Lens Assy. BRO-85948000
...
18
Grill & Spring Assy. BRO-85044000
...
18
Grill & Spring Assy. BRO-85044-000
...
19
Lens BRO-84999-000
...
19
Lens BRO-84999000
...
20
Spring Set BRO-0431A-000
...
20
Spring Set BRO-0431A000
