Nutone NN8200N Range Hood

Model: NN8200N

Save Part Not Listed?
product name

Nutone NN8200N

...
...
1
End Trim (1)-2 Required BRO-K3508000
...
2
Insert Panel-Decor-Black Hoods 30" BRO-K3510000
...
2
Insert Panel-Decor-Black Hoods 36" BRO-K3511000
...
3
Grille Extension-W/Palnuts-(1) 2 Req. BRO-K9036000
...
4
Grille W/Palnuts BRO-K9034000
...
5
Fan Switch-Speed Control BRO-K3381000
...
6
Light Switch BRO-K3522000
...
7
Knob-Black Set Of Two BRO-K9025000
...
8
Lamp Socket BRO-K1307000
...
9
Receptacle BRO-K3160000
...
10
Cover-Switch BRO-K1311000
...
11
Insulation Pad (1)-2 Required BRO-K1317000
...
12
Power Unit BRO-K1434000
...
13
Motor BRO-K1462000
...
14
Blower Wheel-Left Or Right BRO-K1304000
...
15
Blower Housing-Left Or Right BRO-K1303000
...
16
Filter Assembly-Aluminum And Charcoal-2 Req. BRO-K3470000
...
17
Charcoal Filter-Set Of Two BRO-K3458000
...
18
Aluminum Filter (1)-2 Required BRO-K1442000
...
19
Cover Almond All Al BRO-K1309K21
...
19
Cover Coffee All Cf BRO-K1309K23
...
19
Cover Harvest Wheat All Hw BRO-K1309K26
...
19
Cover Stainless Steel All Ss BRO-K1309K28
...
19
Cover White All Wh BRO-K1309K30
...
20
Lens-Light BRO-K1310000

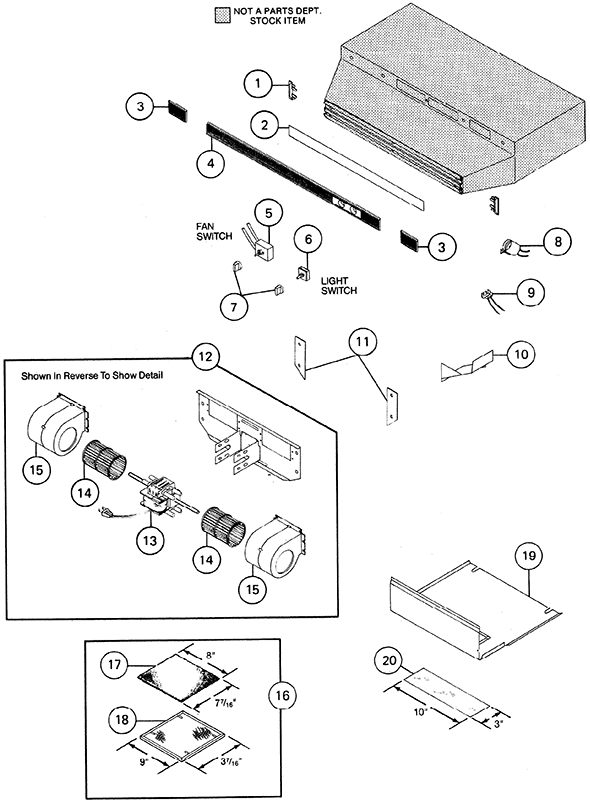

Schematic Image Zoomed
