Nutone NN8100F Range Hood

Model: NN8100F

Save Part Not Listed?
product name

Nutone NN8100F

...
...
1
Transition Duct Assembly-W/Damper BRO-K1459000
...
2
End Trim (1)-2 Required BRO-K3508000
...
3
Insert Panel-Decor 30" Hoods, Black. BRO-K3510000
...
3
Insert Panel-Decor 30" Hoods, White. BRO-K4732000
...
3
Insert Panel-Decor 36" Hoods, Black. BRO-K3511000
...
3
Insert Panel-Decor 36" Hoods, White. BRO-K4733000
...
4
Grille Extension-W/Palnuts (1) 2 Req. Not Used On 30" Models, Black. BRO-K9036000
...
4
Grille Extension-W/Palnuts (1) 2 Req. Not Used On 30" Models, White. BRO-K9037000
...
5
Grille W/Palnuts, White. BRO-K9035000
...
5
Grille W/Palnuts, Black. BRO-K9034000
...
6
Fan Switch-Speed Control BRO-K3381000
...
7
Light Switch BRO-K3522000
...
8
Knob Set Of Two, Black. BRO-K9025000
...
8
Knob Set Of Two, White. BRO-K9040000
...
9
Lamp Socket BRO-K1307000
...
10
Receptacle BRO-K3160000
...
11
Cover-Switch BRO-K1311000
...
12
Baffle Plate BRO-K4429000
...
13
Insulation Pad-(1)-2 Required BRO-K1317000
...
14
Insulation Pad BRO-K1305000
...
15
Power Unit BRO-K1443000
...
16
Motor BRO-K1302000
...
17
Blower Wheel-Left Or Right BRO-K1304000
...
18
Blower Housing-Left Or Right BRO-K1303000
...
19
Filter Assembly-Aluminum And Charcoal-2 Req. BRO-K3470000
...
20
Charcoal Filter-Set Of Two BRO-K3458000
...
21
Aluminum Filter (1)-2 Required BRO-K1442000
...
22
Cover Almond All Al BRO-K1309K21
...
22
Cover Black All Bl BRO-K1309K22
...
22
Cover Coffee All Cf BRO-K1309K23
...
22
Cover Harvest Wheat All Hw BRO-K1309K26
...
22
Cover Stainless Steel All Ss BRO-K1309K28
...
22
Cover White All Wh, Ww BRO-K1309K30
...
23
Lens-Light BRO-K1310000
...
24
Screw Pack-(2) 8 X 3/16 Slt. Hex Wash/Hd. "A" BRO-K1480000

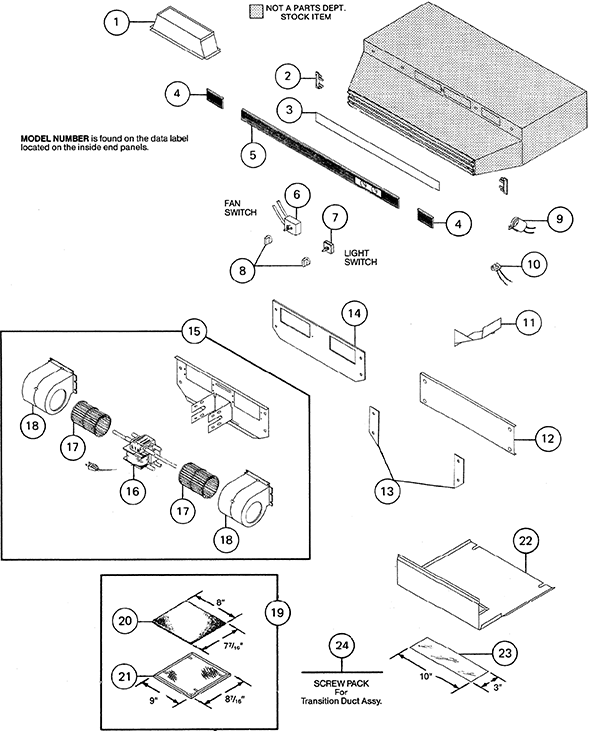

Schematic Image Zoomed
