Nutone MCV309N Door Chime

Model: MCV309N

Save Part Not Listed?
product name

Nutone MCV309N

...
...
xx
Envelope Assy. (Mtg. Hdwe.) (Not Shown) BRO-66530000
...
xx
Envelope Assy. (Mtg. Hdwe.) (Not Shown) BRO-66530-000
...
1
Mechanism Assy. BRO-66487000
...
1
Mechanism Assy. BRO-66487-000
...
2
Striker Arm Assy. BRO-66491-000
...
2
Striker Arm Assy. BRO-66491000
...
3
Striker Spring BRO-66494-000
...
3
Striker Spring BRO-66494000
...
4
Baseplate BRO-66488-000
...
4
Baseplate BRO-66488000
...
5
Reed Set W/Grommets BRO-69616000
...
5
Reed Set W/Grommets BRO-69616-000
...
6
Grommet Set (6) BRO-69683000
...
6
Grommet Set (6) BRO-69683-000
...
7
Spring-Return BRO-66490-046
...
7
Spring-Return BRO-66490046
...
8
Cover White BRO-09907000
...
8
Cover Walnut BRO-09908-000
...
8
Cover White BRO-09907-000
...
8
Cover Walnut BRO-09908000
...
12
Name Card Holder BRO-00108000
...
12
Name Card Holder BRO-00108-000
...
13
Name Card BRO-09887-000
...
13
Name Card BRO-09887000
...
14
Pushbutton Cam & Housing Assy. BRO-66553000
...
14
Pushbutton Cam & Housing Assy. BRO-66553-000
...
15
Escutcheon Gold BRO-66554019
...
15
Escutcheon Gold BRO-66554-019
...
16
Pushbutton Housing Assy. Gold BRO-66542000
...
16
Pushbutton Housing Assy. Gold BRO-66542-000

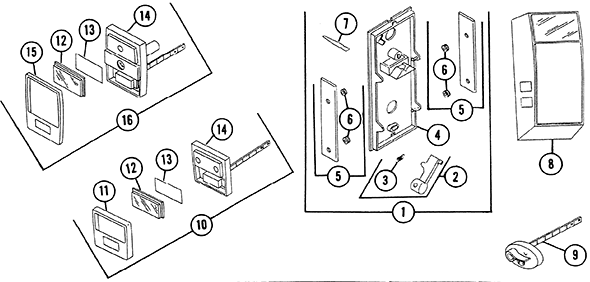

Schematic Image Zoomed
