product name

Nutone MCN304 Door Chime

Model: MCN304

Save Part Not Listed?
product name

Nutone MCN304

...
...
xx
Envelope Assembly (Mtg. Screws) Not Shown BRO-66530000
...
xx
Envelope Assembly (Mtg. Screws) Not Shown BRO-66530-000
...
1
Mechanism Assembly BRO-66487000
...
1
Mechanism Assembly BRO-66487-000
...
2
Striker Arm Assembly BRO-66491-000
...
2
Striker Arm Assembly BRO-66491000
...
3
Striker Arm Spring BRO-66494-000
...
3
Striker Arm Spring BRO-66494000
...
4
Baseplate BRO-66488-000
...
4
Baseplate BRO-66488000
...
5
Reed Set -2 With Grommets BRO-89669000
...
5
Reed Set -2 With Grommets BRO-89669-000
...
6
Grommet Set -6 BRO-69683-000
...
6
Grommet Set -6 BRO-69683000
...
7
Return Spring BRO-66490-046
...
7
Return Spring BRO-66490046
...
8
Cover White BRO-09882000
...
8
Cover Walnut BRO-09883-000
...
8
Cover White BRO-09882-000
...
8
Cover Walnut BRO-09883000
...
10
Housing Assembly Gold BRO-66523000
...
10
Housing Assembly Gold BRO-66523-000
...
11
Escutcheon Gold BRO-66525019
...
11
Escutcheon Silver BRO-66525-014
...
11
Escutcheon Gold BRO-66525-019
...
11
Escutcheon Silver BRO-66525014
...
12
Name Card Holder BRO-09889000
...
12
Name Card Holder BRO-09889-000
...
13
Name Card - Can Be Made From Card Stock Cut To Size: 2" X 7/8" BRO-09887000
...
13
Name Card - Can Be Made From Card Stock Cut To Size: 2" X 7/8" BRO-09887-000
...
14
Pushbutton Cam & Housing Assembly BRO-66527000
...
14
Pushbutton Cam & Housing Assembly BRO-66527-000

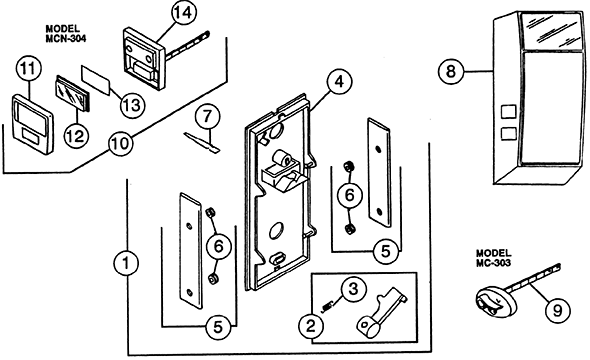

Schematic Image Zoomed
