Nutone MC303 Door Chime

Model: MC303

Save Part Not Listed?
product name

Nutone MC303

...
...
1
Mechanism Assembly BRO-66487000
...
1
Mechanism Assembly BRO-66487-000
...
2
Striker Arm Assembly BRO-66491000
...
2
Striker Arm Assembly BRO-66491-000
...
3
Striker Arm Spring BRO-66494000
...
3
Striker Arm Spring BRO-66494-000
...
4
Baseplate BRO-66488000
...
4
Baseplate BRO-66488-000
...
5
Reed Set -2 With Grommets BRO-89669000
...
5
Reed Set -2 With Grommets BRO-89669-000
...
6
Grommet Set -6 BRO-69683000
...
6
Grommet Set -6 BRO-69683-000
...
7
Return Spring BRO-66490046
...
7
Return Spring BRO-66490-046
...
8
Cover White BRO-09882000
...
8
Cover White BRO-09882-000
...
9
Handle And Escutcheon Assembly BRO-66523-000
...
9
Handle And Escutcheon Assembly BRO-66523000
...
10
Housing Assembly Gold BRO-66523-000
...
10
Housing Assembly Gold BRO-66523000

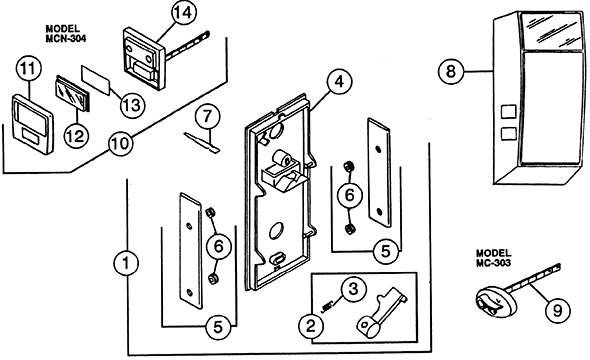

Schematic Image Zoomed
