Nutone M7T Range Hood

Model: M7T

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Nutone M7T

...
...
xx
Envelope Assy. (Mtg. Screws) BRO-27871000
...
1
Wiring Harness BRO-27890000
...
2
Plug Housing BRO-27240000
...
3
Switch Light BRO-17163000
...
4
Switch, Fan BRO-24485000
...
5
Light Socket BRO-18775000
...
6
Knob (Fan Or Light) BRO-69176000
...
7
Nameplate BRO-29922000
...
8
"B" Unit (Motor, Blade & Brkt.) BRO-69071000
...
9
Fan Blade BRO-27860000
...
10
Motor BRO-27987000
...
11
Motor Bracket BRO-27850000
...
12
Outlet Box Cover BRO-27851005
...
13
Outlet Box BRO-27848005
...
14
Lens BRO-27897000
...
15
Filter 8 15/16" X 8 15/16" X 11/32" Alum. BRO-27861000

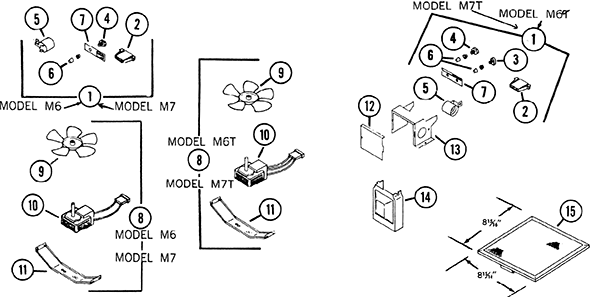

Schematic Image Zoomed
