Nutone M622 Exhaust Fan

Model: M622

Save Part Not Listed?
product name

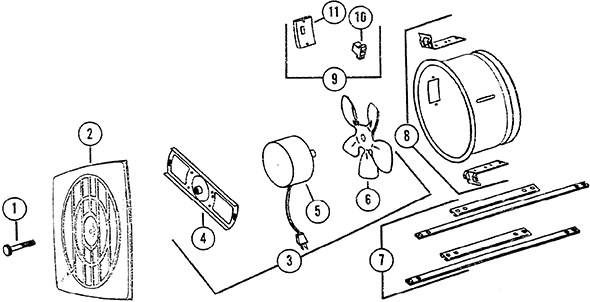

Nutone M622

...
...
1
Grille Screw BRO-11244
...
2
Grille Assembly BRO-13063
...
3
"B" Unit Ref. No' S. 4, 5, And 6 BRO-69025
...
4
Motor Bracket BRO-11829
...
5
Motor BRO-26750
...
6
Fan Blade BRO-11805
...
7
Hanger Bar Set (2) BRO-13306
...
8
"A" Housing W/ 10949 Ceiling Mounting Bracket BRO-10941
...
9
Cutlet Box Cover Assembly BRO-10247
...
10
Plug Receptacle BRO-10034
...
11
Outlet Box Cover BRO-10177
...
12
Outlet Box (Not Shown) BRO-10473
