product name

Nutone LS80L Exhaust Fan

Model: LS80L

Save Part Not Listed?
product name

Nutone LS80L

...
...
1
Hangfr Rar (4 Required) BRO-44388000
...
1
Hangfr Rar (4 Required) BRO-44388-000
...
2
Outlet Box Assembly BRO-88939-000
...
2
Outlet Box Assembly BRO-88939000
...
3
Louver BRO-89165-000
...
3
Louver BRO-89165000
...
4
Blower Housing BRO-89163000
...
4
Blower Housing BRO-89163-000
...
5
Motor Mounting Plate BRO-89164000
...
5
Motor Mounting Plate BRO-89164-000
...
6
Blower Wheel BRO-89166000
...
6
Blower Wheel BRO-89166-000
...
7
Motor BRO-89167000
...
7
Motor BRO-89167-000
...
8
Motor Mounting Hardware BRO-0506B-000
...
8
Motor Mounting Hardware BRO-0506B000
...
9
Grille Assembly BRO-88958000
...
9
Grille Assembly BRO-88958-000
...
10
Spring (2 Required) BRO-0431A000
...
10
Spring (2 Required) BRO-0431A-000
...
11
Duct Collar BRO-89156005
...
11
Duct Collar BRO-89156-005
...
12
Power Unit BRO-88954000
...
12
Power Unit BRO-88954-000
...
14
Grille & Spring Assembly BRO-0701B-000
...
14
Grille & Spring Assembly BRO-0701B000
...
15
Lens BRO-84999-000
...
15
Lens BRO-84999000
...
16
Reflector Assembly (Not Shown) BRO-88946-000
...
16
Reflector Assembly (Not Shown) BRO-88946000

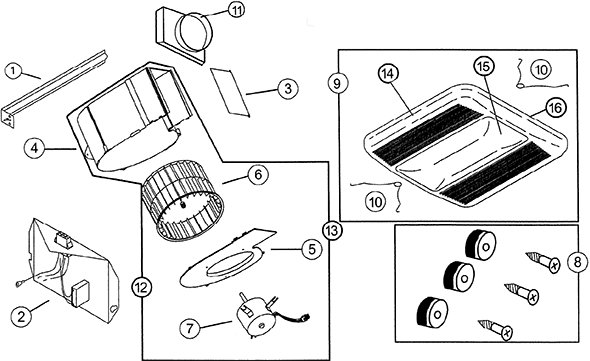

Schematic Image Zoomed
