Nutone LD49N Door Chime

Model: LD49N

Save Part Not Listed?
product name

Nutone LD49N

...
...
1
Cover Assembly BRO-30707000
...
1
Cover Assembly BRO-30707-000
...
2
Side Panel (1) - 2 Required BRO-58551-000
...
2
Side Panel (1) - 2 Required BRO-58551000
...
3
Front Panel BRO-58550-000
...
3
Front Panel BRO-58550000
...
4
Mechanism Assembly BRO-1236A000
...
4
Mechanism Assembly BRO-1236A-000
...
5
Chassis BRO-30705005
...
5
Chassis BRO-30705-005
...
6
Lamp (1) -4 Required -6.3 V, 0.250 A. BRO-39330000
...
6
Lamp (1) -4 Required -6.3 V, 0.250 A. BRO-39330-000
...
7
Lamp Socket And Wire Assembly BRO-30706000
...
7
Lamp Socket And Wire Assembly BRO-30706-000
...
8
Power Unit Assembly- W/Plunger, Spring, Cap BRO-08135000
...
8
Power Unit Assembly- W/Plunger, Spring, Cap BRO-08135-000
...
9
Plunger Set -4 BRO-69581000
...
9
Plunger Set -4 BRO-69581-000
...
10
Terminal P.C. Board Assemb Y- W/Wiring Dia BRO-1237AREB
...
10
Terminal P.C. Board Assemb Y- W/Wiring Dia BRO-1237A-REB
...
11
Card - Information BRO-1957A000
...
11
Card - Information BRO-1957A-000
...
19
Tube Set BRO-H9855-000
...
19
Tube Set BRO-H9855000
...
20
Hanger Set- 4 "C" Version BRO-1958A-000
...
20
Hanger Set- 4 "C" Version BRO-1958A000

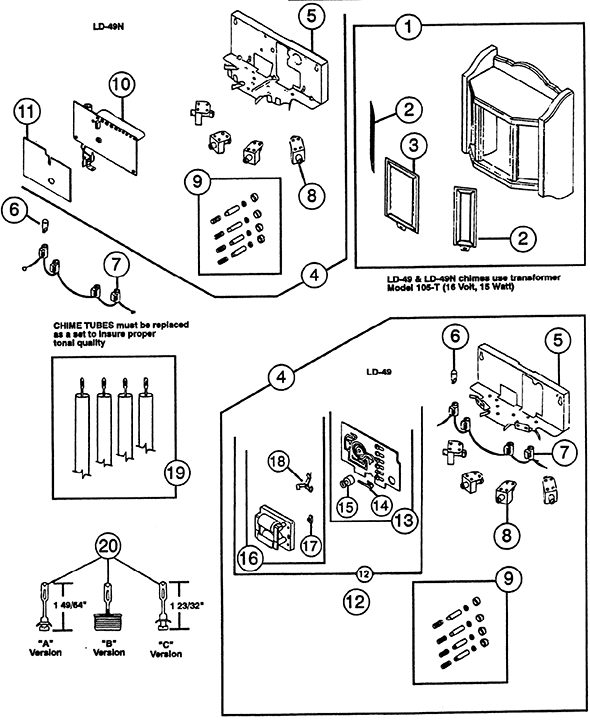

Schematic Image Zoomed
