product name

Nutone LD49 Door Chime

Model: LD49

Save Part Not Listed?

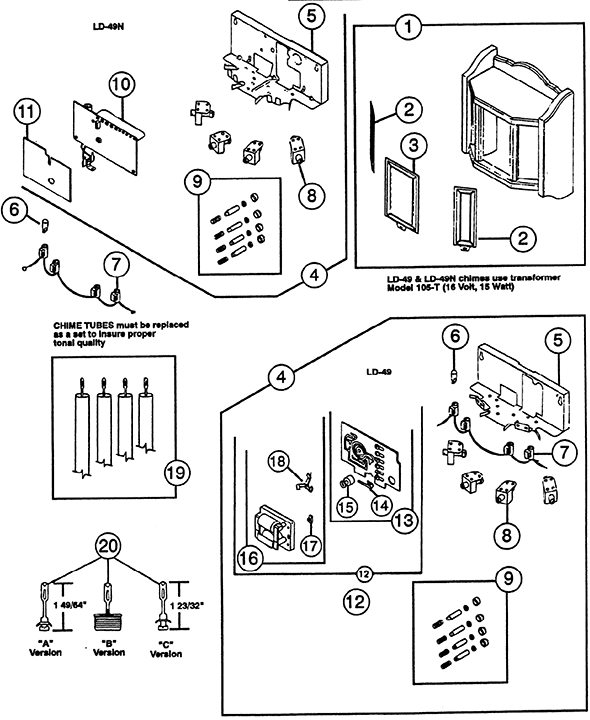

product name

Nutone LD49

...
...
1
Cover Assembly BRO-30707000
...
1
Cover Assembly BRO-30707-000
...
2
Side Panel (1) - 2 Required BRO-58551-000
...
2
Side Panel (1) - 2 Required BRO-58551000
...
3
Front Panel BRO-58550-000
...
3
Front Panel BRO-58550000
...
4
Mechanism Assembly BRO-1236A000
...
4
Mechanism Assembly BRO-1236A-000
...
5
Chassis BRO-30705-005
...
5
Chassis BRO-30705005
...
6
Lamp (1) -4 Required -6.3 V, 0.250 A. BRO-39330-000
...
6
Lamp (1) -4 Required -6.3 V, 0.250 A. BRO-39330000
...
8
Power Unit Assembly- W/Plunger, Spring, Cap BRO-08135-000
...
8
Power Unit Assembly- W/Plunger, Spring, Cap BRO-08135000
...
9
Plunger Set -4 BRO-69581-000
...
9
Plunger Set -4 BRO-69581000
...
12
P.C. Board And Motor Assembly BRO-1236A000
...
12
P.C. Board And Motor Assembly BRO-1236A-000
...
13
P.C. Terminal Board Assembly BRO-1236A000
...
13
P.C. Terminal Board Assembly BRO-1236A-000
...
14
Starting Contact BRO-65697051
...
14
Starting Contact BRO-65697-051
...
15
Volume Control BRO-64185000
...
15
Volume Control BRO-64185-000
...
16
Motor Assembly - W/Rotor & Slide Switch BRO-12364-000
...
16
Motor Assembly - W/Rotor & Slide Switch BRO-12364000
...
17
Slide Switch Assembly BRO-69543-00
...
17
Slide Switch Assembly BRO-6954300
...
19
Tube Set BRO-H9855-000
...
19
Tube Set BRO-H9855000
...
20
Hanger Set- 4 "B" Version BRO-1216A-000
...
20
Hanger Set- 4 "A' Version BRO-69533-000
...
20
Hanger Set- 4 "B" Version BRO-1216A000
...
20
Hanger Set- 4 "A' Version BRO-69533000
