product name

Nutone LB12WW Door Chime

Model: LB12WW

Save Part Not Listed?
product name

Nutone LB12WW

...
...
xx
Mounting Screws -(2) 8 X 1 1/4 Ph/Slt Pan Hd. BRO-65364000
...
xx
Mounting Screws -(2) 8 X 1 1/4 Ph/Slt Pan Hd. BRO-65364-000
...
1
Cover White White BRO-30925-000
...
1
Cover White White BRO-30925000
...
2
Mechanism Assembly BRO-63560000
...
2
Mechanism Assembly BRO-63560-000
...
3
Base BRO-63561000
...
3
Base BRO-63561-000
...
6
Power Unit With Plungers BRO-1133A000
...
6
Power Unit With Plungers BRO-1133A-000
...
7
Plunger Set - 1 Double, 1 Single BRO-69550000
...
7
Plunger Set - 1 Double, 1 Single BRO-69550-000
...
8
Reed Set With Grommets BRO-69669000
...
8
Reed Set With Grommets BRO-69669-000
...
9
Grommet Set - 6 BRO-69683000
...
9
Grommet Set - 6 BRO-69683-000

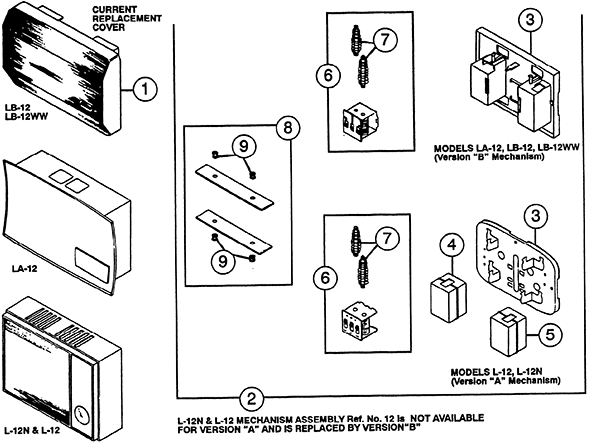

Schematic Image Zoomed
