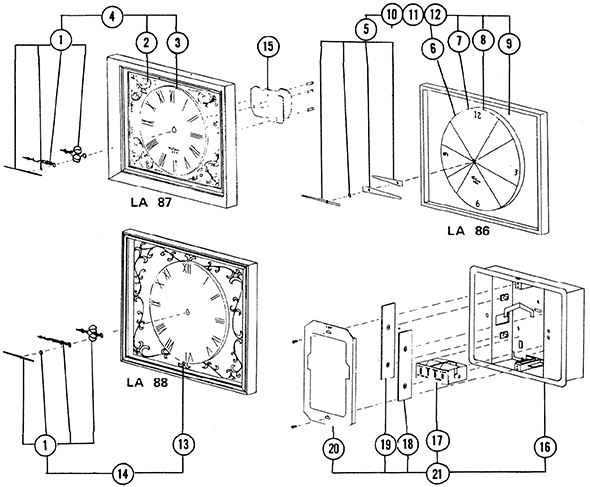

Nutone LA87 Door Chime

Model: LA87

Save Part Not Listed?
product name

Nutone LA87

...
...
1
Hand Set: Second Hand, I-Kmd Lock Nut, Minute Hand, Hour Hand BRO-69530
...
2
Insert - Off White BRO-9860
...
3
Clock Face BRO-9840
...
4
Clock Assy. (Includes Ref. No 8) BRO-12244
...
15
Clock Movement Assy. BRO-12163
...
16
Baseplate Assy. BRO-9482
...
17
Duplex Power Unit BRO-9804
...
18
R. H. Reed & Grommet Assy. BRO-0804
...
19
L. H. Reed & Grommet Assy. BRO-3389
...
20
Cover Mounting Plate BRO-8858
...
21
Mechanism Assy. BRO-9803
