Nutone LA76 Door Chime

Model: LA76

Save Part Not Listed?
product name

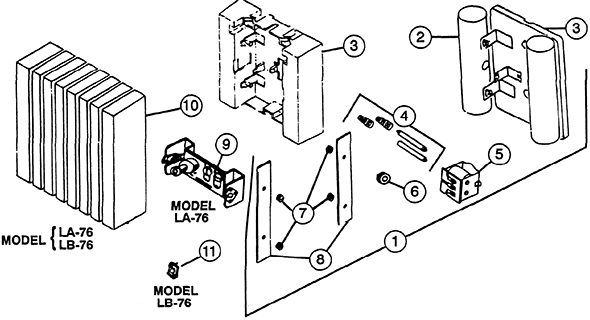

Nutone LA76

...
...
1
Mechanism Assembly BRO-33614000
...
2
Base Plate With Resonators BRO-66439000
...
2
Base Plate With Resonators BRO-66439-000
...
4
Plunger Set -1-Front, 1-Rear BRO-69550000
...
4
Plunger Set -1-Front, 1-Rear BRO-69550-000
...
5
Power Unit With Plungers BRO-1133A000
...
5
Power Unit With Plungers BRO-1133A-000
...
6
Bumper BRO-67274000
...
6
Bumper BRO-67274-000
...
7
Grommet Set BRO-69691000
...
7
Grommet Set BRO-69691-000
...
8
Reed Set With Grommets BRO-69666000
...
8
Reed Set With Grommets BRO-69666-000
...
10
Cover With Cup, Light Oak BRO-36364-285
...
10
Cover With Cup, White BRO-54738-000
...
10
Cover With Cup, Teak BRO-54739-285
...
10
Cover With Cup, Light Oak BRO-36364285
...
10
Cover With Cup, White BRO-54738000
...
10
Cover With Cup, Teak BRO-54739285
