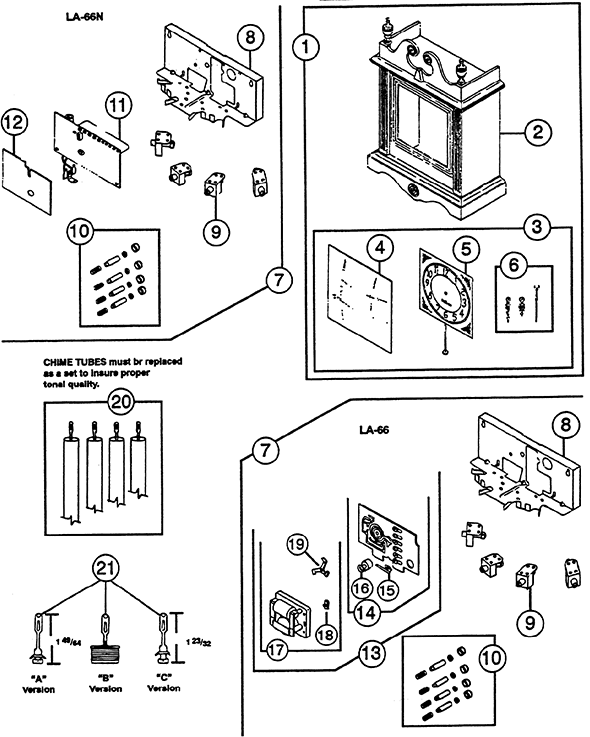

Nutone LA66 Door Chime

Model: LA66

Save Part Not Listed?
product name

Nutone LA66

...
...
xx
Envelope Assembly - (Mtg. Screws) BRO-65364000
...
xx
Envelope Assembly - (Mtg. Screws) BRO-65364-000
...
1
Cabinet - Complete (W/Clock Mechanism) BRO-56827000
...
1
Cabinet - Complete (W/Clock Mechanism) BRO-56827-000
...
2
Cabinet Assembly - Only BRO-58450-000
...
2
Cabinet Assembly - Only BRO-58450000
...
3
Clock Assembly - Complete BRO-1139A-000
...
3
Clock Assembly - Complete BRO-1139A000
...
4
Clock Crystal BRO-05793-000
...
4
Clock Crystal BRO-05793000
...
5
Clock Face - Only BRO-1139A-000
...
5
Clock Face - Only BRO-1139A000
...
6
Hand Set BRO-69586-000
...
6
Hand Set BRO-69586000
...
8
Chassis BRO-30705-005
...
8
Chassis BRO-30705005
...
9
Power Unit Assembly - W/Plunger, Spring, Cap BRO-08135000
...
9
Power Unit Assembly - W/Plunger, Spring, Cap BRO-08135-000
...
10
Plunger Set - 4 BRO-69581000
...
10
Plunger Set - 4 BRO-69581-000
...
12
Information Card BRO-1957A-000
...
12
Information Card BRO-1957A000
...
13
P.C. Board And Motor Assembly BRO-1236A000
...
13
P.C. Board And Motor Assembly BRO-1236A-000
...
14
P.C. Terminal Board Assembly BRO-1236A000
...
14
P.C. Terminal Board Assembly BRO-1236A-000
...
15
Starting Contact BRO-65697051
...
15
Starting Contact BRO-65697-051
...
16
Volume Control BRO-64185000
...
16
Volume Control BRO-64185-000
...
18
Sude Switch Assembly BRO-69543000
...
18
Sude Switch Assembly BRO-69543-000
...
20
Tube Set BRO-H9855000
...
20
Tube Set BRO-H9855-000
...
21
Tube Hanger Set- 4 "A" Version BRO-69533000
...
21
Tube Hanger Set- 4 "B" Version BRO-1216A000
...
21
Tube Hanger Set- 4 "A" Version BRO-69533-000
...
21
Tube Hanger Set- 4 "B" Version BRO-1216A-000
...
21
Tube Hanger Set- 4 "C" Version BRO-1958A-000
...
21
Tube Hanger Set- 4 "C" Version BRO-1958A000
