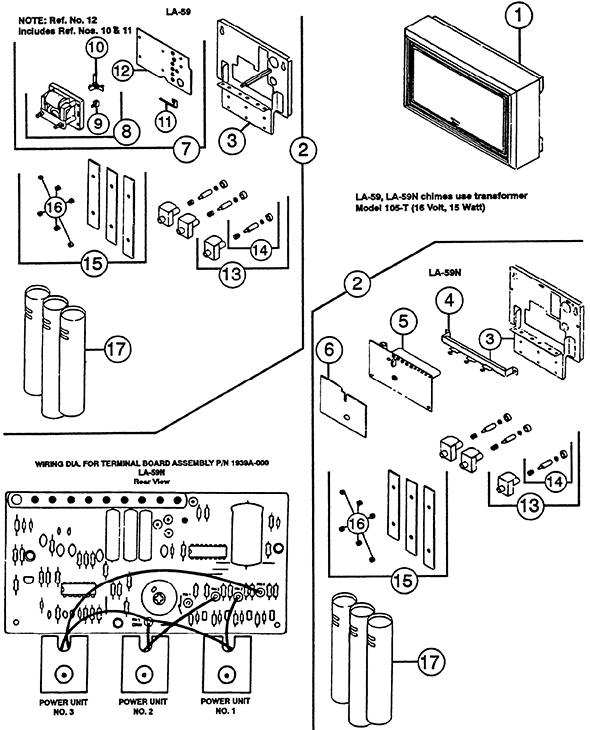

Nutone LA59N Door Chime

Model: LA59N

Save Part Not Listed?
product name

Nutone LA59N

...
...
xx
Envelope Assembly (Mtg. Screws) BRO-65364000
...
xx
Envelope Assembly (Mtg. Screws) BRO-65364-000
...
1
Cover Assembly-Complete BRO-30725000
...
1
Cover Assembly-Complete BRO-30725-000
...
2
Mechanism Assembly BRO-30709-000
...
2
Mechanism Assembly BRO-30709000
...
3
Base Plate Assembly BRO-30710-005
...
3
Base Plate Assembly BRO-30710005
...
4
Bracket BRO-07033-000
...
4
Bracket BRO-07033000
...
5
Terminal Board Assy W/Wiring Dia. BRO-1939AREB
...
5
Terminal Board Assy W/Wiring Dia. BRO-1939A-REB
...
6
Information Card BRO-1957A000
...
6
Information Card BRO-1957A-000
...
7
P.C. Board & Motor Assembly BRO-30709-000
...
7
P.C. Board & Motor Assembly BRO-30709000
...
8
Motor Mechanism Assembly BRO-30709000
...
8
Motor Mechanism Assembly BRO-30709-000
...
13
Power Unit Assembly (1)-3 Required BRO-08135000
...
13
Power Unit Assembly (1)-3 Required BRO-08135-000
...
14
Plunger Set-4 BRO-69581000
...
14
Plunger Set-4 BRO-69581-000
...
15
Reed Set BRO-07158-000
...
15
Reed Set BRO-07158000
...
16
Grommet Set-6 BRO-69691000
...
16
Grommet Set-6 BRO-69691-000
...
17
Resonator Tube Assembly-Gold BRO-69578000
...
17
Resonator Tube Assembly-Gold BRO-69578-000
