product name

Nutone LA59 Door Chime

Model: LA59

Save Part Not Listed?
product name

Nutone LA59

...
...
xx
Envelope Assembly (Mtg. Screws) BRO-65364000
...
xx
Envelope Assembly (Mtg. Screws) BRO-65364-000
...
1
Cover Assembly-Complete BRO-30725000
...
1
Cover Assembly-Complete BRO-30725-000
...
2
Mechanism Assembly BRO-30709-000
...
2
Mechanism Assembly BRO-30709000
...
9
Slide Switch Assembly BRO-69543000
...
9
Slide Switch Assembly BRO-69543-000
...
11
Starting Contact BRO-65697-051
...
11
Starting Contact BRO-65697051
...
12
P.C. Board Assembly, W/Starting Contact And Rotor Assy BRO-30709000
...
12
P.C. Board Assembly, W/Starting Contact And Rotor Assy BRO-30709-000
...
13
Power Unit Assembly (1)-3 Required BRO-08135000
...
13
Power Unit Assembly (1)-3 Required BRO-08135-000
...
14
Plunger Set-4 BRO-69581000
...
14
Plunger Set-4 BRO-69581-000
...
15
Reed Set BRO-07158000
...
15
Reed Set BRO-07158-000
...
16
Grommet Set-6 BRO-69691000
...
16
Grommet Set-6 BRO-69691-000
...
17
Resonator Tube Assembly-Gold BRO-69578000
...
17
Resonator Tube Assembly-Gold BRO-69578-000

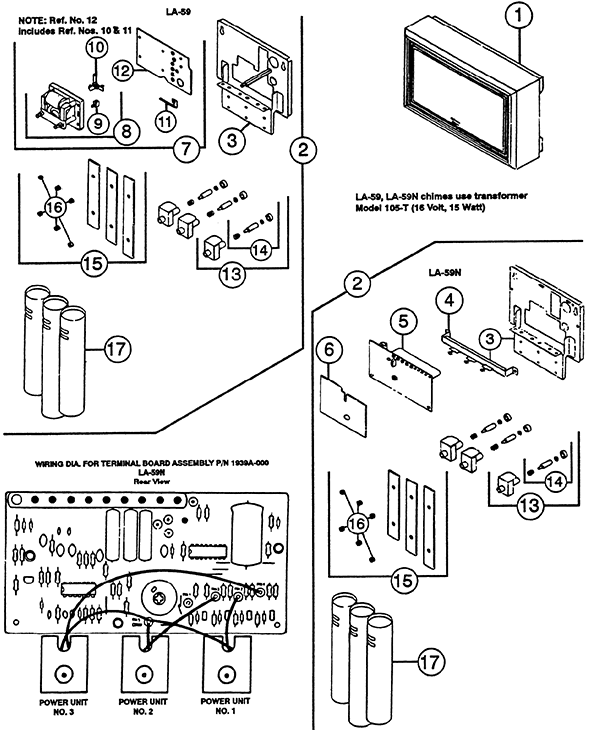

Schematic Image Zoomed
