Nutone LA58 Door Chime

Model: LA58

Save Part Not Listed?
product name

Nutone LA58

...
...
xx
Envelope Assembly (Mtg. Screws) BRO-65364000
...
xx
Envelope Assembly (Mtg. Screws) BRO-65364-000
...
1
Cabinet Assy-Complete, Bleached Oak BRO-30864-000
...
1
Cabinet Assy-Complete, Bleached Oak BRO-30864000
...
1
Cabinet Assy-Complete, Light Oak BRO-30727-000
...
1
Cabinet Assy-Complete, Dark Oak BRO-30726-000
...
1
Cabinet Assy-Complete, Light Oak BRO-30727000
...
1
Cabinet Assy-Complete, Dark Oak BRO-30726000
...
2
Front Panel W/ Plaques, Bleached Oak BRO-1947A-000
...
2
Front Panel W/ Plaques, Bleached Oak BRO-1947A000
...
2
Front Panel W/ Plaques, Light Oak BRO-1949A-000
...
2
Front Panel W/ Plaques, Dark Oak BRO-1948A-000
...
2
Front Panel W/ Plaques, Dark Oak BRO-1948A000
...
2
Front Panel W/ Plaques, Light Oak BRO-1949A000
...
3
Mechanism Assembly BRO-30709000
...
3
Mechanism Assembly BRO-30709-000
...
10
Slide Switch Assembly BRO-69543000
...
10
Slide Switch Assembly BRO-69543-000
...
12
Starting Contact BRO-65697051
...
12
Starting Contact BRO-65697-051
...
13
P.C. Board Assembly W/Starting Contact And Rotor Assy BRO-30709
...
14
Power Unit Assembly (1) -3 Required BRO-08135000
...
14
Power Unit Assembly (1) -3 Required BRO-08135-000
...
15
Plunger Set-4 BRO-69581000
...
15
Plunger Set-4 BRO-69581-000
...
16
Reed Set BRO-07158000
...
16
Reed Set BRO-07158-000
...
17
Grommet Set -6 BRO-69691000
...
17
Grommet Set -6 BRO-69691-000
...
18
Resonator Tube Assembly-Gold BRO-69578000
...
18
Resonator Tube Assembly-Gold BRO-69578-000

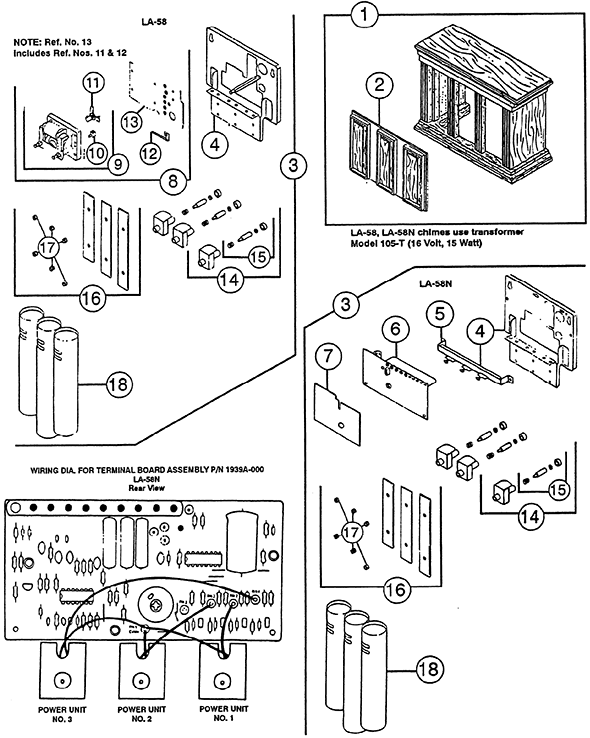

Schematic Image Zoomed
