Nutone LA53 Door Chime

Model: LA53

Save Part Not Listed?
product name

Nutone LA53

...
...
1
Cover Assembly Complete BRO-8868A000
...
1
Cover Assembly Complete BRO-8868A-000
...
2
Door Assembly BRO-8871A000
...
2
Door Assembly BRO-8871A-000
...
3
Pushbutton BRO-35308000
...
3
Pushbutton BRO-35308-000
...
4
Rubber Bumper BRO-67274000
...
4
Rubber Bumper BRO-67274-000
...
5
Spacer BRO-8856A000
...
5
Spacer BRO-8856A-000
...
6
Pc Board Assembly M BRO-8857A000
...
6
Pc Board Assembly M BRO-8857A-000
...
7
Speaker BRO-36076000
...
7
Speaker BRO-36076-000
...
8
Chime Base Assembly Complete BRO-8867A000
...
8
Chime Base Assembly Complete BRO-8867A-000
...
9
Diode - For Pushbutton 1N4002 BRO-36549-000
...
9
Diode - For Pushbutton -1N4002 BRO-36549000

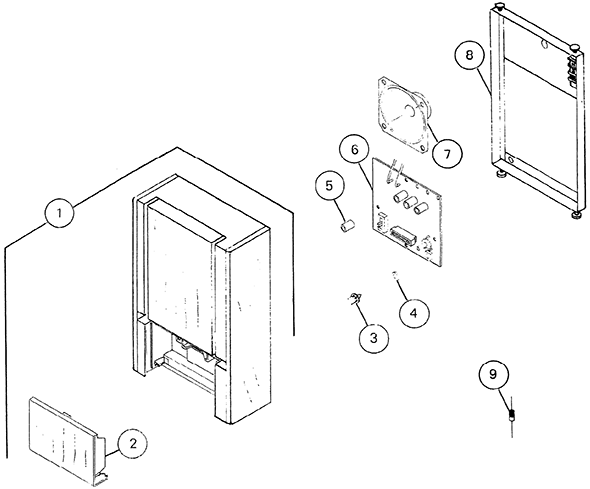

Schematic Image Zoomed
