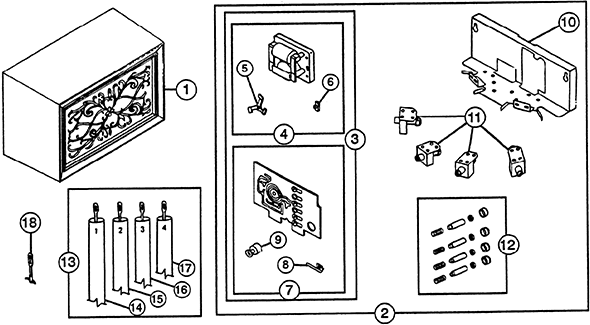

Nutone LA42 Door Chime

Model: LA42

Save Part Not Listed?
product name

Nutone LA42

...
...
2
Mechanism Assembly BRO-1236A000
...
2
Mechanism Assembly BRO-1236A-000
...
3
P.C. Board & Motor Assembly BRO-1236A-000
...
3
P.C. Board & Motor Assembly BRO-1236A000
...
6
Slide Switch BRO-69543-000
...
6
Slide Switch BRO-69543000
...
7
P.C. Board Assembly BRO-1236A000
...
7
P.C. Board Assembly BRO-1236A-000
...
9
Volume Control BRO-64185000
...
9
Volume Control BRO-64185-000
...
11
Power Unit-1 With Plunger, Spring. Cap BRO-08135000
...
11
Power Unit-1 With Plunger, Spring. Cap BRO-08135-000
...
12
Plunger Set-4 BRO-69581000
...
12
Plunger Set-4 BRO-69581-000
...
13
Tube Set BRO-H9855000
...
13
Tube Set BRO-H9855-000
...
15
Tube No. 2-37 3/4 ", Plastic Hanger BRO-H9858000
...
15
Tube No. 2-37 3/4 ", Plastic Hanger BRO-H9858-000
...
16
Tube No. 3-35 5/8", Plastic Hanger BRO-H9859000
...
16
Tube No. 3-35 5/8", Plastic Hanger BRO-H9859-000
...
17
Tube No. 4-33 1/4", Plastic Hanger BRO-H9860-000
...
17
Tube No. 4-33 1/4", Plastic Hanger BRO-H9860000
...
18
Plastic Tube Hanger Set-4 BRO-69533-000
...
18
Plastic Tube Hanger Set-4 BRO-69533000
