product name

Nutone LA28 Door Chime

Model: LA28

Save Part Not Listed?
product name

Nutone LA28

...
...
1
Mechanism Assy. BRO-64558000
...
1
Mechanism Assy. BRO-64558-000
...
2
Base Only BRO-63561000
...
2
Base Only BRO-63561-000
...
3
Bumper BRO-01667000
...
3
Bumper BRO-01667-000
...
4
Reed Set - 2 W/Grommets BRO-69669000
...
4
Reed Set - 2 W/Grommets BRO-69669-000
...
5
Grommet Set (6) BRO-69683000
...
5
Grommet Set (6) BRO-69683-000
...
6
Power Unit Only BRO-63562000
...
6
Power Unit Only BRO-63562-000
...
7
Plunger Set 1 - Front - Double BRO-69550-000
...
7
Plunger Set 1 - Rear - Single BRO-69550-000
...
7
Plunger Set 1 - Rear - Single BRO-69550000
...
7
Plunger Set 1 - Front - Double BRO-69550000
...
8
Cover Assy. Yellow BRO-66825-000
...
8
Cover Assy. Green BRO-66826-000
...
8
Cover Assy. White BRO-66827-000
...
8
Cover Assy. White BRO-66827000
...
8
Cover Assy. Green BRO-66826000
...
8
Cover Assy. Yellow BRO-66825000
...
9
Envelope Assy. (Mtg. Screws) BRO-65364-000
...
9
Envelope Assy. (Mtg. Screws) BRO-65364000

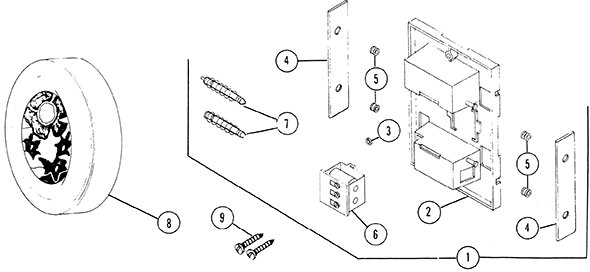

Schematic Image Zoomed
