Nutone LA16 Door Chime

Model: LA16

Save Part Not Listed?
product name

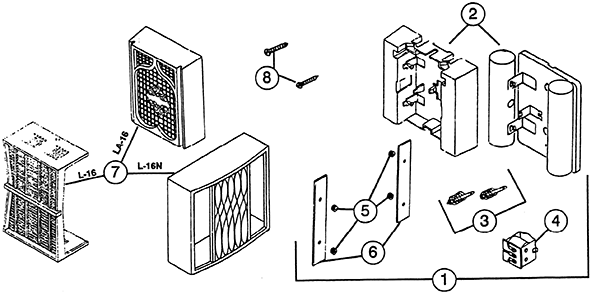

Nutone LA16

...
...
1
Mechanism Assembly Black BRO-65272000
...
1
Mechanism Assembly Black BRO-65272-000
...
2
Baseplate Black BRO-66439000
...
2
Baseplate Black BRO-66439-000
...
3
Plunger Set -1 - Front, Double BRO-69550000
...
3
Plunger Set 2 - Rear, Single BRO-69550000
...
3
Plunger Set -1 - Front, Double BRO-69550-000
...
3
Plunger Set 2 - Rear, Single BRO-69550-000
...
4
Power Unit With Plungers BRO-1133A000
...
4
Power Unit With Plungers BRO-1133A-000
...
5
Grommet Set-6 BRO-69691000
...
5
Grommet Set-6 BRO-69691-000
...
6
Reed Set With Grommets BRO-6966000
...
6
Reed Set With Grommets BRO-6966-000
...
7
Cover Walnut BRO-67153000
...
7
Cover Walnut BRO-67153-000
...
8
Envelope Assembly (Mtg. Screws) BRO-65361-000
...
8
Envelope Assembly (Mtg. Screws) BRO-65361000
