Nutone LA144 Door Chime

Model: LA144

Save Part Not Listed?
product name

Nutone LA144

...
...
1
Cover Assembly Complete BRO-34872000
...
1
Cover Assembly Complete BRO-34872-000
...
2
Mechanism Assembly BRO-53040000
...
2
Mechanism Assembly BRO-53040-000
...
3
Power Unit Assembly BRO-63562000
...
3
Power Unit Assembly BRO-63562-000
...
4
Plunger Set BRO-69550000
...
4
Plunger Set BRO-69550-000
...
5
Reed Set W/Grommets BRO-69669000
...
5
Reed Set W/Grommets BRO-69669-000
...
6
Grommet Set-6 BRO-69683000
...
6
Grommet Set-6 BRO-69683-000
...
7
Base BRO-63561000
...
7
Base BRO-63561-000
...
8
Rubber Bumper BRO-67274-000
...
8
Rubber Bumper BRO-67274000

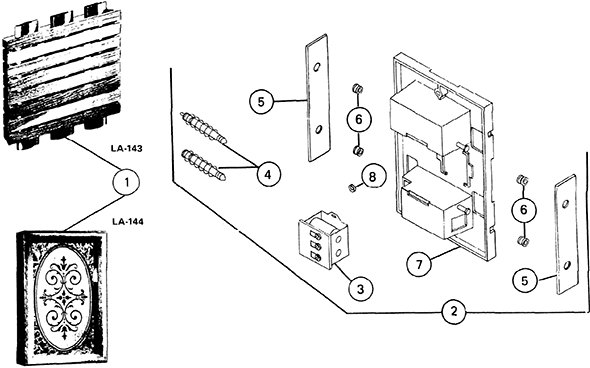

Schematic Image Zoomed
