Nutone LA117 Door Chime

Model: LA117

Save Part Not Listed?
product name

Nutone LA117

...
...
xx
Envelope Assembly Mounting Screws - 2 8 X 14 Pan Head BRO-65364000
...
xx
Envelope Assembly Mounting Screws - 2 8 X 14 Pan Head BRO-65364-000
...
1
Cover Assembly BRO-34236000
...
1
Cover Assembly BRO-34236-000
...
2
Beveled Glass Front BRO-34242-000
...
2
Beveled Glass Front BRO-34242000
...
3
Spacer-4 BRO-1225A-000
...
3
Spacer-4 BRO-1225A000
...
4
Back Cover Assembly BRO-1220A-000
...
4
Back Cover Assembly BRO-1220A000
...
5
Knob -Brass -6 BRO-1226A000
...
5
Knob -Brass -6 BRO-1226A-000
...
6
Mechanism Assembly BRO-63560000
...
6
Mechanism Assembly BRO-63560-000
...
7
Rubber Bumper BRO-67274000
...
7
Rubber Bumper BRO-67274-000
...
8
Base BRO-63561-000
...
8
Base BRO-63561000
...
9
Plunger Set BRO-69550000
...
9
Plunger Set BRO-69550-000
...
10
Grommet Set - 6 BRO-69683000
...
10
Grommet Set - 6 BRO-69683-000
...
11
Power Unit With Plungers BRO-1133A000
...
11
Power Unit With Plungers BRO-1133A-000
...
12
Reed Set With Grommets BRO-69669000
...
12
Reed Set With Grommets BRO-69669-000

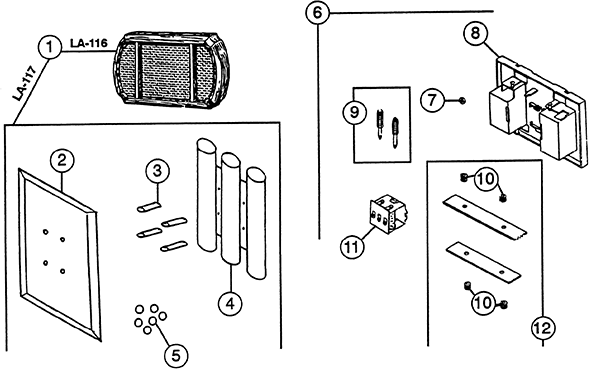

Schematic Image Zoomed
