Nutone K46 Door Chime

Model: K46

Save Part Not Listed?
product name

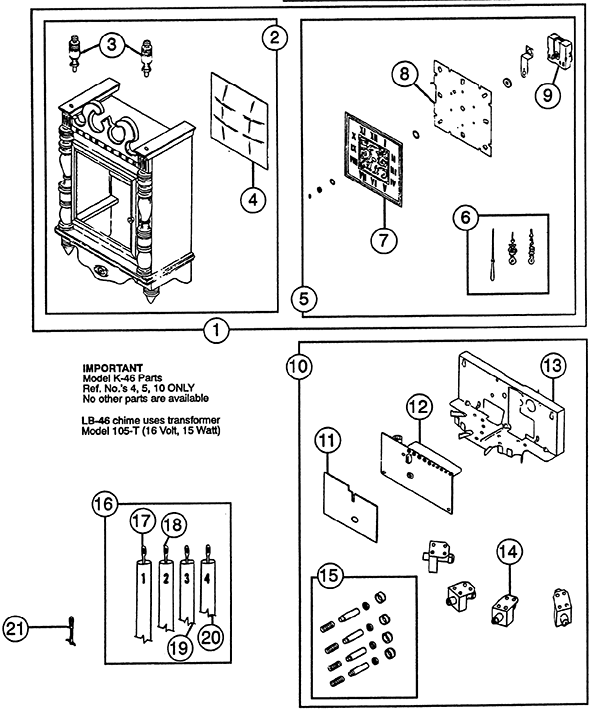

Nutone K46

...
...
1
Cabinet- Complete With Clock BRO-37972000
...
1
Cabinet- Complete With Clock BRO-37972-000
...
2
Cabinet Assembly BRO-1954A000
...
2
Cabinet Assembly BRO-1954A-000
...
3
Final Set BRO-1956A000
...
3
Final Set BRO-1956A-000
...
4
Clock Crystal BRO-05793000
...
4
Clock Crystal BRO-05793-000
...
5
Clock Mounting Plate Assembly BRO-1960A-000
...
5
Clock Mounting Plate Assembly BRO-1960A000
...
6
Hand Set-With Knurled Nut BRO-1955A000
...
6
Hand Set-With Knurled Nut BRO-1955A-000
...
7
Clock Face BRO-37980000
...
7
Clock Face BRO-37980-000
...
8
Clock Mounting Plate BRO-06086005
...
8
Clock Mounting Plate BRO-06086-005
...
9
Clock Mechanism-With Hands And All Nuts BRO-37979-000
...
9
Clock Mechanism-With Hands And All Nuts BRO-37979000
...
10
Mechanism Assembly-See Note-For Modl K-46 BRO-1236A000
...
10
Mechanism Assembly-See Note-For Modl K-46 BRO-1236A-000
...
11
Card-Information BRO-1957A000
...
11
Card-Information BRO-1957A-000
...
12
Terminal P.C7, Board Assembly BRO-1237AREB
...
13
Chassis BRO-30705-005
...
13
Chassis BRO-30705005
...
14
Power Unit Assembly-With Plunger, Spring, Cap BRO-08135-000
...
14
Power Unit Assembly-With Plunger, Spring, Cap BRO-08135000
...
15
Plunger Set-4 BRO-69581-000
...
15
Plunger Set-4 BRO-69581000
...
16
Tube Set BRO-H9855-000
...
16
Tube Set BRO-H9855000
...
17
Tube No. 1-43 27/32'' BRO-H9857-000
...
17
Tube No. 1-43 27/32'' BRO-H9857000
...
18
Tube No. 2-37 21/32" BRO-H9858-000
...
18
Tube No. 2-37 21/32" BRO-H9858000
...
19
Tube No. 3 - 35 19/32'' BRO-H9859-000
...
19
Tube No. 3 - 35 19/32'' BRO-H9859000
...
20
Tube No. 4 - 33 1/4" BRO-H9860-000
...
20
Tube No. 4 - 33 1/4" BRO-H9860000
...
21
Tube Hanger Set - 4 BRO-1958A-000
...
21
Tube Hanger Set - 4 BRO-1958A000
