Nutone HD80LNT Exhaust Fan

Model: HD80LNT

Save Part Not Listed?
product name

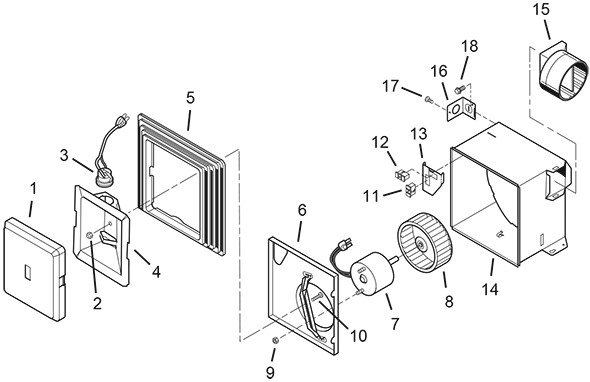

Nutone HD80LNT

...
...
xx
Light Reflector Assembly (Includes Key Nos. 3 & 4) BRO-97014212
...
xx
Blower Assembly (Includes Key Nos. 6 Thru 10) BRO-97015162
...
xx
Wire Panel Assembly (Includes Key Nos. 11,12,13) BRO-97015171
...
1
Light Lens BRO-97013578
...
2
Acorn Nut BRO-97005316
...
3
Bulb Holder BRO-99770029
...
4
Light Reflector BRO-97014211
...
5
Grille BRO-97013974
...
6
Motor Plate BRO-97014926
...
7
Motor BRO-99080520
...
8
Impeller BRO-99020276
...
9
Motor Nut (2 Req.) BRO-99260425
...
10
Grille Screw BRO-99150582
...
11
Receptacle (Black) BRO-99270982
...
12
Receptacle (White) BRO-99270981
...
13
Wire Panel BRO-98009612
...
14
Housing BRO-97014922
...
15
Damper/Duct Connector BRO-97014185
...
16
Wiring Plate BRO-98008868
...
17
Screw, 8-18 X .375 BRO-99150575
...
18
Ground Screw BRO-99150471
