Nutone G9093N Ceiling Heater

Model: G9093N

Save Part Not Listed?
product name

Nutone G9093N

...
...
1
Hangar Bar Set BRO-13306000
...
1
Hangar Bar Set BRO-13306-000
...
2
Ceiling Mounting Bracket Assy.-Set Of 4 BRO-53194-000
...
2
Ceiling Mounting Bracket Assy.-Set Of 4 BRO-53194000
...
3
Outlet Box BRO-11320-000
...
3
Outlet Box BRO-11320000
...
4
Outlet Box Cover BRO-27508000
...
4
Outlet Box Cover BRO-27508-000
...
5
Receptacle/Socket/Wire Assembly BRO-0476A-000
...
5
Receptacle/Socket/Wire Assembly BRO-0476A000
...
6
Duct Assembly BRO-11390-000
...
6
Duct Assembly BRO-11390000
...
7
Heat Box Assembly BRO-27544-000
...
7
Heat Box Assembly BRO-27544000
...
8
Thermal Protector BRO-27548-000
...
8
Thermal Protector BRO-27548000
...
9
Insulator Bushing Set (1)-2 Required BRO-69314000
...
9
Insulator Bushing Set (1)-2 Required BRO-69314-000
...
10
Element Support (1)-5 Required BRO-27546000
...
10
Element Support (1)-5 Required BRO-27546-000
...
11
Heating Element-1500 W. BRO-58120-000
...
11
Heating Element-1500 W. BRO-58120000
...
12
Blower Housing Assembly BRO-64956005
...
12
Blower Housing Assembly BRO-64956-005
...
13
Power Unit, Heat BRO-69352000
...
13
Power Unit, Vent BRO-69353000
...
13
Power Unit, Vent BRO-69353-000
...
13
Power Unit, Heat BRO-69352-000
...
14
Motor, Heat BRO-69285000
...
14
Motor, Vent BRO-58000-000
...
14
Motor, Heat BRO-69285-000
...
14
Motor, Vent BRO-58000000
...
15
Motor Mounting Plate BRO-57766-000
...
15
Motor Mounting Plate BRO-57766000
...
16
Blower Wheel-3-3/4" X 2-1/2", Vent BRO-66142000
...
16
Blower Wheel-3-3/4" X 2", Heat BRO-66583000
...
16
Blower Wheel-3-3/4" X 2", Heat BRO-66583-000
...
16
Blower Wheel-3-3/4" X 2-1/2", Vent BRO-66142-000
...
17
Light Socket Assembly BRO-64966000
...
17
Light Socket Assembly BRO-64966-000
...
18
Reflector BRO-35964-206
...
18
Reflector BRO-35964206
...
21
Screw (1)-For Lens Mounting Brackets BRO-27603015
...
21
Screw (1)-For Lens Mounting Brackets BRO-27603-015
...
22
Mounting Bracket-Lens BRO-56706000
...
22
Mounting Bracket-Lens BRO-56706-000
...
23
Lens BRO-27561000
...
23
Lens BRO-27561-000
...
25
Screw (1) BRO-52858015
...
25
Screw (1) BRO-52858-015
...
26
Grille Assembly-Early Production, Gold BRO-27606000
...
26
Grille Assembly-Early Production, Gold BRO-27606-000
...
31
Switch-Double Toggle-15 Amp. BRO-K3148-000
...
31
Switch-Double Toggle-15 Amp. BRO-K3148000
...
33
Switch Assembly-Complete BRO-33428-000
...
33
Switch Assembly-Complete BRO-33428000
...
34
Wall Plate-Switch BRO-57318-000
...
34
Wall Plate-Switch BRO-57318000
...
35
Single Toggle Switch-15 Amp. BRO-57317-000
...
35
Single Toggle Switch-15 Amp. BRO-57317000
...
36
Switch Strap BRO-64971000
...
36
Switch Strap BRO-64971-000
...
37
Switch (1)-3 Required BRO-21432-000
...
37
Switch (1)-3 Required BRO-21432000
...
38
Wall Plate-Switch BRO-64972-000
...
38
Wall Plate-Switch BRO-64972000

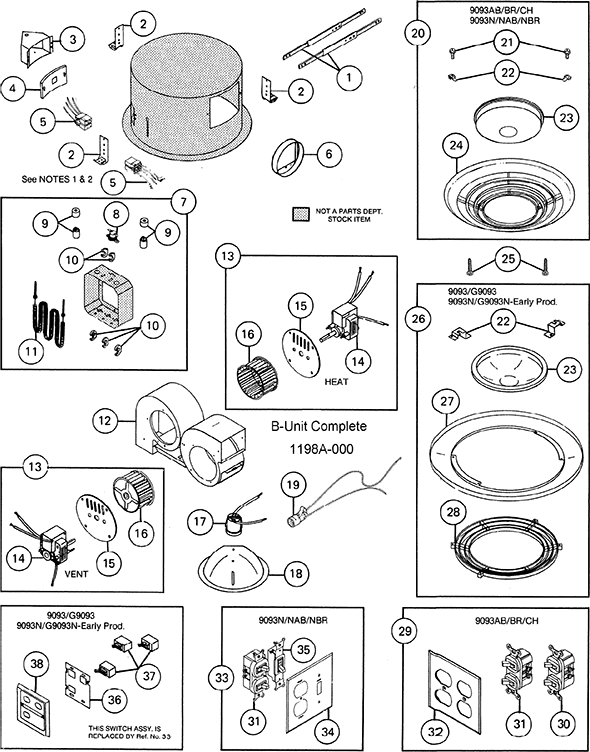

Schematic Image Zoomed
