Nutone DK308 Door Chime

Model: DK308

Save Part Not Listed?

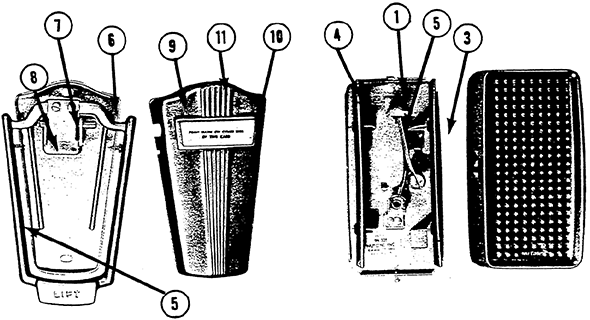

Nutone DK308

Base Plate Complete (Mechanism) (Includes Reed Assembly, Activating Arm Assembly) BRO-2837

Base Plate Only (Reed Stud, Upper And Lower Bearing) BRO-2836

Right Hand Reed Assembly (Includes Grommet) BRO-1515

Left Hand Reed Assembly (Includes Grommet) BRO-1514

Activating Arm Assembly (Striker Arm) (Includes Arm Spring, Bearing Assembly) BRO-2492

Front Base Plate (Includes Trunion Supports, Bushing, Trunion Assembly, Cam Shaft And Handle) BRO-6675

Cam And Shaft Assembly BRO-6676

Trunion Assembly (Includes Trunion Assembly, Spring And Trunion Shaft) BRO-6068

Escutcheon Plate (Includes Bezel, Window, Cord, Backing) BRO-6677

Bezel BRO-6045

Cover BRO-2452

Model: 1AHF08390
