Nutone 9840 Auxillary Heater

Model: 9840

Save Part Not Listed?
product name

Nutone 9840

...
...
xx
Screw(1)-For Mounting Heat Element BRO-90087039
...
xx
Screw(1)-For Mounting Heat Element BRO-90087-039
...
1
Rocker Switch-D.P.Dt. BRO-35984000
...
1
Rocker Switch-D.P.Dt. BRO-35984-000
...
2
Knob BRO-35986-000
...
2
Knob BRO-35986000
...
3
Grille Screws (2) BRO-0471A000
...
3
Grille Screws (2) BRO-0471A-000
...
4
Decal-For Thermostat BRO-35985-000
...
4
Decal-For Thermostat BRO-35985000
...
5
Grille Assembly W/Decal + Name Plate BRO-0470A000
...
5
Grille Assembly W/Decal + Name Plate BRO-0470A-000
...
6
Thermostat BRO-35983000
...
6
Thermostat BRO-35983-000
...
7
Thermo Protector BRO-35982000
...
7
Thermo Protector BRO-35982-000
...
8
Heat Element BRO-35981000
...
8
Heat Element BRO-35981-000
...
9
Blower And Motor BRO-35980900
...
9
Blower And Motor BRO-35980-900

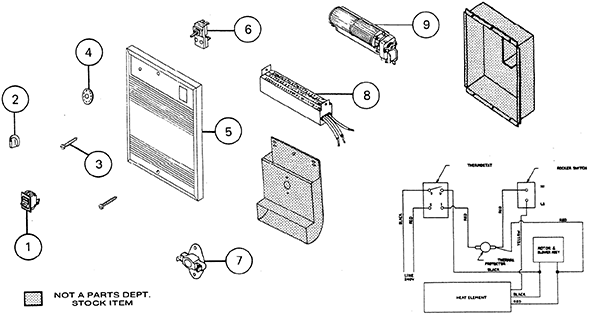

Schematic Image Zoomed
