Nutone 9605 Ceiling Heater

Model: 9605

Save Part Not Listed?

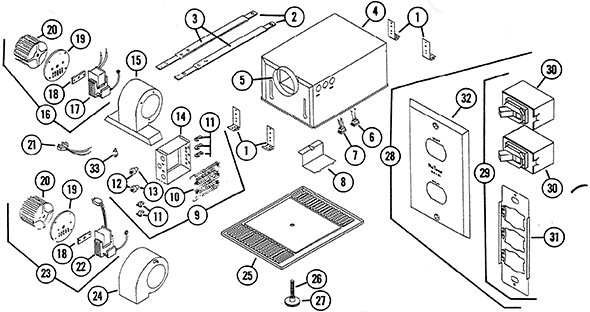

product name

Nutone 9605

...
...
1
Ceiling Mounting Bracket (4 Required) BRO-10949
...
2
Hanger Extension BRO-13308
...
3
Hanger Rod BRO-13307
...
4
"A" Housing Only BRO-63662
...
5
Duct Assy. BRO-11390
...
6
Plug Receptacle Black (Vent) BRO-10034
...
7
Plug Receptacle White (Heat) BRO-18105
...
8
Outlet Box Cover BRO-63647
...
9
Heat Box Assy. BRO-63679
...
10
Heating Element -1500 Watts BRO-27593
...
11
Element Support BRO-27546
...
12
Insulator Bushing Female BRO-15346
...
13
Insulator Bushing Male BRO-15345
...
14
Heat Box Only- BRO-27545
...
15
Blower Housing (Heat) BRO-63678
...
16
Blower Assy. ("B" Unit) Heat BRO-69334
...
17
Motor (Heat) BRO-63676
...
18
Grommet BRO-63674
...
19
Motor Mount Plate Assy. BRO-63673
...
20
Blower Wheel BRO-63677
...
21
White Plug Assy. BRO-63680
...
22
Motor Vent BRO-63676
...
23
Blower Assy. Vent BRO-69335
...
24
Blower Housing BRO-63671
...
25
Grille BRO-63657
...
26
Grille Mounting Stud BRO-63682
...
27
Knob BRO-63683
...
28
Switch Assembly Complete BRO-63703
...
29
Switch, Strap & Wire Assy. BRO-27427
...
30
Switch (2 Required) BRO-21432
...
31
Strap BRO-27429
...
32
Wall Plate BRO-27431
...
33
Thermal Protector BRO-27548
Schematic Image Zoomed
