Nutone 9295 Ceiling Heater

Model: 9295

Save Part Not Listed?
product name

Nutone 9295

...
...
1
Strain Relief BRO-14984000
...
1
Strain Relief BRO-14984-000
...
2
Base BRO-69284-000
...
2
Base BRO-69284000
...
3
Motor BRO-17687-000
...
3
Motor BRO-17687000
...
4
Fan Blade BRO-18032000
...
4
Fan Blade BRO-18032-000
...
5
Thermo Protector BRO-18287000
...
5
Thermo Protector BRO-18287-000
...
6
Terminal Board BRO-18188000
...
6
Terminal Board BRO-18188-000
...
7
Insulator Bushing Set BRO-69314000
...
7
Insulator Bushing Set BRO-69314-000
...
8
Reflector BRO-23116008
...
8
Reflector BRO-23116-008
...
9
Element Support (1) - 11 Required BRO-22399000
...
9
Element Support (1) - 11 Required BRO-22399-000
...
10
Heating Element, Watts 1500 BRO-23121000
...
10
Heating Element, Watts 1500 BRO-23121-000
...
11
Grille Assy. BRO-22189-000
...
11
Grille Assy. BRO-22189000
...
12
Grille Screw BRO-22199-015
...
12
Grille Screw BRO-22199015

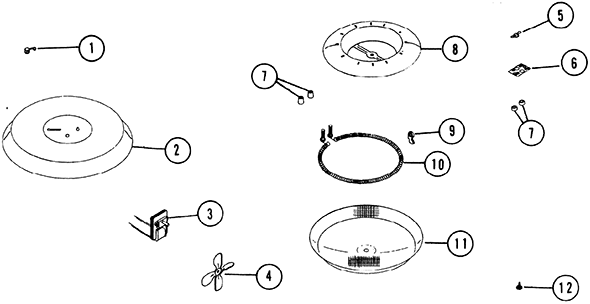

Schematic Image Zoomed
