Nutone 9289 Auxillary Heater

Model: 9289

Save Part Not Listed?
product name

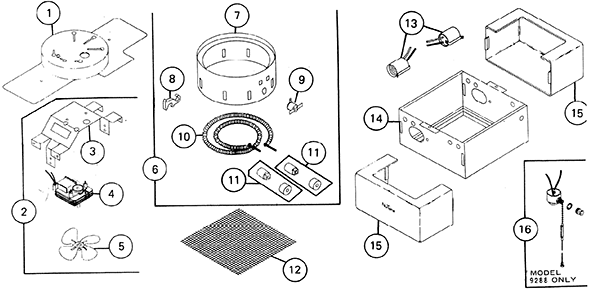

Nutone 9289

...
...
1
Cover BRO-68069206
...
1
Cover BRO-68069-206
...
2
Fan "B" Unit BRO-1115A-000
...
2
Fan "B" Unit BRO-1115A000
...
3
Mounting Plate BRO-68064-000
...
3
Mounting Plate BRO-68064000
...
4
Motor BRO-68065000
...
4
Motor BRO-68065-000
...
5
Fan Blade Assembly BRO-17728000
...
5
Fan Blade Assembly BRO-17728-000
...
6
Heater "B" Unit BRO-69282-000
...
6
Heater "B" Unit BRO-69282000
...
7
Shroud BRO-68067-000
...
7
Shroud BRO-68067000
...
8
Element Hook - 8 Required BRO-20724-000
...
8
Element Hook - 8 Required BRO-20724000
...
9
Thermal Protector BRO-66799000
...
9
Thermal Protector BRO-66799-000
...
10
Heating Element, 1250 Watt BRO-23120000
...
10
Heating Element, 1250 Watt BRO-23120-000
...
11
Insulator Bushing Set - 2 Required BRO-69314000
...
11
Insulator Bushing Set - 2 Required BRO-69314-000
...
12
Grille BRO-68071014
...
12
Grille BRO-68071-014
...
13
Light Socket 2 Required BRO-68068000
...
13
Light Socket 2 Required BRO-68068-000
...
14
Heater Base BRO-68070-206
...
14
Heater Base BRO-68070206
...
15
Lens - 2 Required BRO-68072-000
...
15
Lens - 2 Required BRO-68072000
...
16
Switch Assembly BRO-68698-000
...
16
Switch Assembly BRO-68698000
