Nutone 9285(OLD) Auxillary Heater

Model: 9285-OLD

Save Part Not Listed?

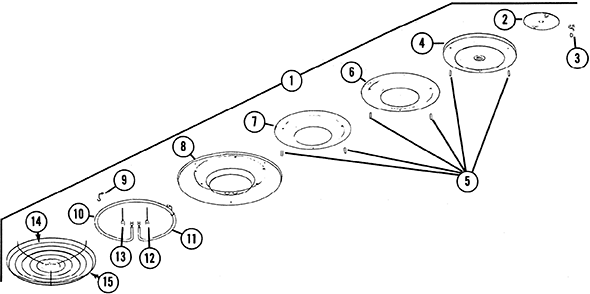

product name

Nutone 9285-OLD

...
...
1
Unit Assembly BRO-15910
...
2
Outlet Box Cover Assembly BRO-15919
...
3
Strain Relief BRO-18022
...
4
Ceiling Plate BRO-15911
...
5
Spacer BRO-15925
...
6
Upper Baffle BRO-15922
...
7
Lower Baffle BRO-15923
...
8
Reflector BRO-15924
...
9
Element Hook (3 Required) BRO-18049
...
11
Heating Element - 1000 Watts BRO-15943
...
12
Strap And Black Lead BRO-15913
...
13
Strap And White Lead BRO-15916
...
14
Grille Assembly BRO-16544
