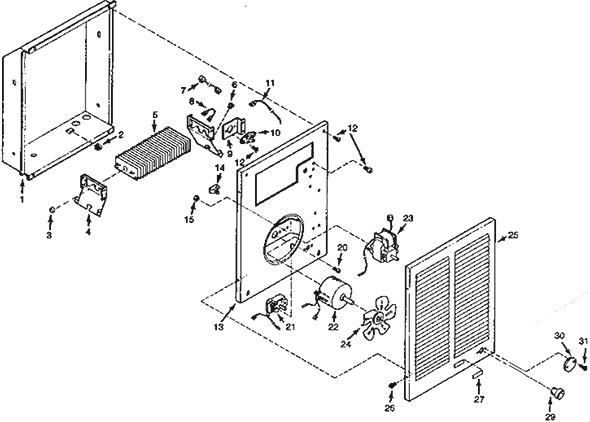

Nutone 9192NT Auxillary Heater

Model: 9192NT

Save Part Not Listed?
product name

Nutone 9192NT

...
...
xx
Assembly, Thermal Overload (Includes Key Nos. 9, 10, & 12 (2)) BRO-97013945
...
1
Housing BRO-97009334
...
2
Grounding Clip BRO-99390015
...
3
Fan Delay BRO-99030190
...
4
Element Bracket (2 Required) BRO-98006989
...
5
Heating Element. BRO-99271155
...
6
Bushing BRO-99400061
...
7
Black Wire Assembly (29-1/2") BRO-97008688
...
8
Black Jumper Wire BRO-97008690
...
11
Red Power Wire BRO-97008692
...
12
Screw, 8-18 X 3/8 Ph. Pan Head (14 Required) BRO-99150491
...
13
Partition Plate Assembly BRO-97008683
...
14
Wire Clamp ( 3 Required) BRO-93270619
...
15
Nut, 8-32 Hex Keps (2 Required) BRO-99260425
...
20
Screw, 6-32 X 1/4 Ph. Pan Head (2 Required) BRO-99160350
...
21
Thermostat BRO-99030324
...
23
Motor. BRO-99080249
...
24
Fan Blade BRO-99020255
...
25
Grille BRO-97013822
...
26
Screw, 8-18 X 3/8 Ph Truss Hd. (4 Required) BRO-99150478
...
27
Grille Logo BRO-99091017
...
29
Knob BRO-99360136
...
30
Security Cover BRO-99110687
...
31
Screw, 8-18 X 5/8 Oval Head (2 Required) BRO-93150462
