product name

Nutone 9110N Auxillary Heater

Model: 9110N

Save Part Not Listed?
product name

Nutone 9110N

...
...
1
Outlet Box Cover Assembly BRO-18082000
...
1
Outlet Box Cover Assembly BRO-18082-000
...
2
Plug Receptacle - Black BRO-10034-000
...
2
Plug Receptacle - Black BRO-10034000
...
3
Plug Receptacle - White BRO-56721-000
...
3
Plug Receptacle - White BRO-56721000
...
4
Heat Plug Assembly - White BRO-18228000
...
4
Heat Plug Assembly - White BRO-18228-000
...
5
Brown Plug Assembly BRO-20658-000
...
5
Brown Plug Assembly BRO-20658000
...
6
Thermal Protector BRO-19865-000
...
6
Thermal Protector BRO-19865000
...
7
Butterfly Actuator BRO-16444-000
...
7
Butterfly Actuator BRO-16444000
...
13
Heating Element BRO-16476-000
...
13
Heating Element BRO-16476000
...
14
Fan Blade Assembly BRO-69288000
...
14
Fan Blade Assembly BRO-69288-000
...
15
Motor 1962-1965 Studs On The Back BRO-20688SER
...
15
Motor 1965-1967 Studs On Shaft Side BRO-26716-SER
...
15
Motor 1962-1965 Studs On The Back BRO-20688-SER
...
15
Motor 1965-1967 Studs On Shaft Side BRO-26716SER
...
18
Blower Wheel BRO-13655000
...
18
Blower Wheel BRO-13655-000
...
20
Lens Only-Wo/Bezel BRO-18148000
...
20
Lens Only-Wo/Bezel BRO-18148-000
...
21
Switch Assembly Complete BRO-21441000
...
21
Switch Assembly Complete BRO-21441-000
...
22
Rotary Switch BRO-27612000
...
22
Rotary Switch BRO-27612-000
...
23
Pilot Lite BRO-21447000
...
23
Pilot Lite BRO-21447-000
...
24
Switch And Pilot Lite Mounting Bracket BRO-21445-000
...
24
Switch And Pilot Lite Mounting Bracket BRO-21445000
...
25
Switch Plate Assembly BRO-21442-000
...
25
Switch Plate Assembly BRO-21442000
...
26
Knob BRO-9052A-000
...
26
Knob BRO-9052A000

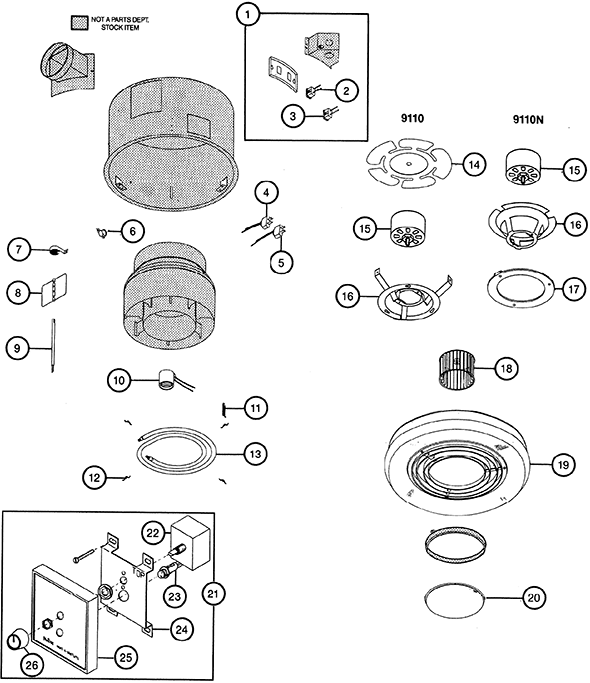

Schematic Image Zoomed
