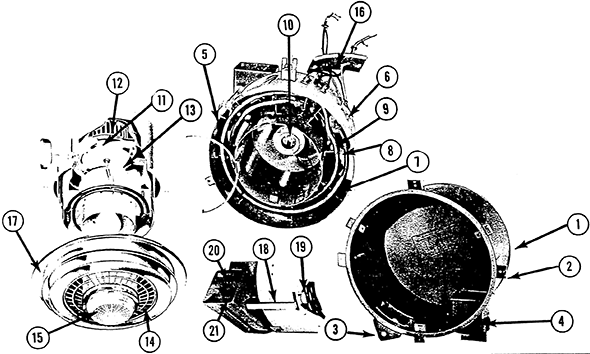

Nutone 911 Auxillary Heater

Model: 911

Save Part Not Listed?
product name

Nutone 911

...
...
xx
Heating Element BRO-10529
...
1
"A" Unit Housing Assembly BRO-16415
...
2
Ceiling Mounting Brackets BRO-10173
...
3
Outlet Box BRO-11320
...
4
Transition Assembly BRO-16417
...
6
Thermal Protector BRO-19871
...
7
Heating Element BRO-10593
...
8
Element Hook BRO-11318
...
9
Element Spring BRO-16437
...
10
Lamp Socket Assembly (Includes Socket And Washer) BRO-16438
...
11
Motor BRO-16455
...
12
Blower Wheel BRO-16294
...
13
Fon Blade BRO-16456
...
14
Guard BRO-16452
...
15
Bezel Assembly BRO-16458
...
16
Outlet Box Cover Assembly (Includes Outlet Box Cover And Eyelet) BRO-10383
...
17
Grille Assembly BRO-11324
...
18
Actuator Arm Assembly BRO-16440
...
19
Actuator (Bi Metal Coil) BRO-16444
...
20
Damper BRO-16449
...
21
Shaft BRO-16450
