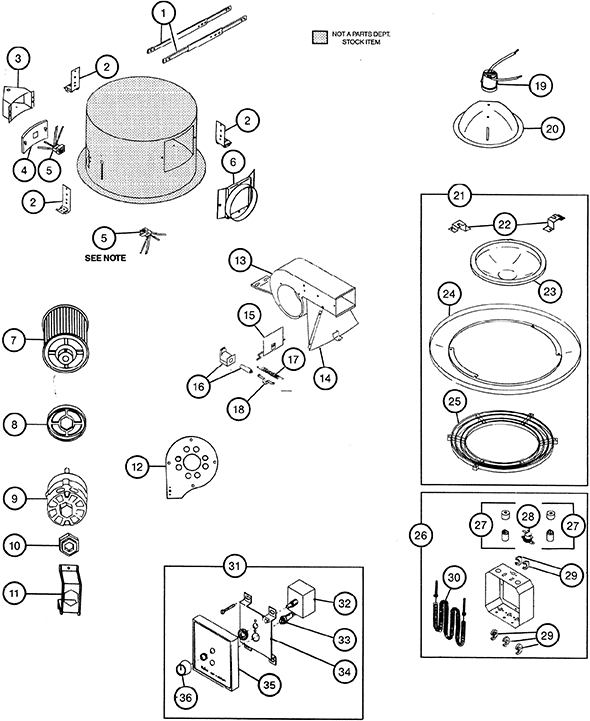

Nutone 9091 Ceiling Heater

Model: 9091

Save Part Not Listed?
product name

Nutone 9091

...
...
1
Hanger Bar Set BRO-13306000
...
1
Hanger Bar Set BRO-13306-000
...
2
Ceiling Mounting Bracket BRO-10173-000
...
2
Ceiling Mounting Bracket BRO-10173000
...
3
Outlet Box BRO-11320-000
...
3
Outlet Box BRO-11320000
...
4
Outlet Box Cover BRO-27508000
...
4
Outlet Box Cover BRO-27508-000
...
5
Receptacle/Socket/Wire Assembly BRO-0479A-000
...
5
Receptacle/Socket/Wire Assembly BRO-0479A000
...
8
Motor Mount-Hex BRO-19359-000
...
8
Motor Mount-Hex BRO-19359000
...
9
Motor BRO-27540-SER
...
9
Motor BRO-27540SER
...
10
Motor Mount BRO-19360-000
...
10
Motor Mount BRO-19360000
...
11
Motor Support BRO-27252000
...
11
Motor Support BRO-27252-000
...
15
Louver Assembly BRO-27579000
...
15
Louver Assembly BRO-27579-000
...
16
Solenoid BRO-27588-000
...
16
Solenoid BRO-27588000
...
17
Spring BRO-64605-000
...
17
Spring BRO-64605000
...
18
Solenoid Linkage BRO-27589-000
...
18
Solenoid Linkage BRO-27589000
...
19
Light Socket Assembly BRO-69296000
...
19
Light Socket Assembly BRO-69296-000
...
20
Reflector BRO-27554206
...
20
Reflector BRO-27554-206
...
21
Guard Assembly, W/Silver Ceiling Ring BRO-56704-000
...
21
Guard Assembly, W/Silver Ceiling Ring BRO-56704000
...
22
Guard Mounting Bracket (2) Required BRO-27562-038
...
22
Guard Mounting Bracket (2) Required BRO-27562038
...
23
Lens BRO-27561000
...
23
Lens BRO-27561-000
...
24
Ceiling Ring Silver BRO-27558014
...
24
Ceiling Ring Silver BRO-27558-014
...
25
Guard BRO-0474A000
...
25
Guard BRO-0474A-000
...
26
Heat Box Assembly BRO-27544-000
...
26
Heat Box Assembly BRO-27544000
...
27
Insulator Bushing Set-(1) Male (1) Female BRO-69314000
...
27
Insulator Bushing Set-(1) Male (1) Female BRO-69314-000
...
28
Thermal Protector BRO-27548000
...
28
Thermal Protector BRO-27548-000
...
29
Element Support (1)-5 Required BRO-27546000
...
29
Element Support (1)-5 Required BRO-27546-000
...
30
Heating Element-1500 W BRO-58120000
...
30
Heating Element-1500 W BRO-58120-000
...
31
Switch Assembly Complete BRO-21441000
...
31
Switch Assembly Complete BRO-21441-000
...
32
Rotary Switch BRO-27612000
...
32
Rotary Switch BRO-27612-000
...
33
Pilot Lite BRO-21447000
...
33
Pilot Lite BRO-21447-000
...
34
Switch And Pilot Lite Mounting Bracket BRO-21445-000
...
34
Switch And Pilot Lite Mounting Bracket BRO-21445000
...
35
Switch Plate Assembly BRO-21442-000
...
35
Switch Plate Assembly BRO-21442000
...
36
Knob BRO-9052A-000
...
36
Knob BRO-9052A000
