product name

Nutone 9090 Auxillary Heater

Model: 9090

Save Part Not Listed?
product name

Nutone 9090

...
...
1
Outlet Box Cover Assembly BRO-18082000
...
1
Outlet Box Cover Assembly BRO-18082-000
...
2
Plug Receptacle-Black BRO-10034-000
...
2
Plug Receptacle-Black BRO-10034000
...
3
Plug Receptacle-White BRO-56721-000
...
3
Plug Receptacle-White BRO-56721000
...
4
Heat Plug Assembly-White BRO-18228000
...
4
Heat Plug Assembly-White BRO-18228-000
...
5
Brown Plug Assembly BRO-20658-000
...
5
Brown Plug Assembly BRO-20658000
...
6
Thermal Protector BRO-19871-000
...
6
Thermal Protector BRO-19871000
...
7
Butterfly Actuator BRO-16444-000
...
7
Butterfly Actuator BRO-16444000
...
13
Heating Element BRO-10593-000
...
13
Heating Element BRO-10593000
...
14
Fan Blade Assembly BRO-69288000
...
14
Fan Blade Assembly BRO-69288-000
...
15
Motor Double Shaft BRO-18214000
...
15
Motor Double Shaft BRO-18214-000
...
18
Blower Wheel BRO-16296000
...
18
Blower Wheel BRO-16296-000
...
20
Lens Only - Wo/Bezel BRO-18148000
...
20
Lens Only - Wo/Bezel BRO-18148-000
...
21
Switch Assembly Complete BRO-21441000
...
21
Switch Assembly Complete BRO-21441-000
...
22
Rotary Switch BRO-27612000
...
22
Rotary Switch BRO-27612-000
...
23
Pilot Lite BRO-21447000
...
23
Pilot Lite BRO-21447-000
...
24
Switch And Pilot Lite Mounting Bracket BRO-21445-000
...
24
Switch And Pilot Lite Mounting Bracket BRO-21445000
...
25
Switch Plate Assembly BRO-21442-000
...
25
Switch Plate Assembly BRO-21442000
...
26
Knob BRO-9052A-000
...
26
Knob BRO-9052A000

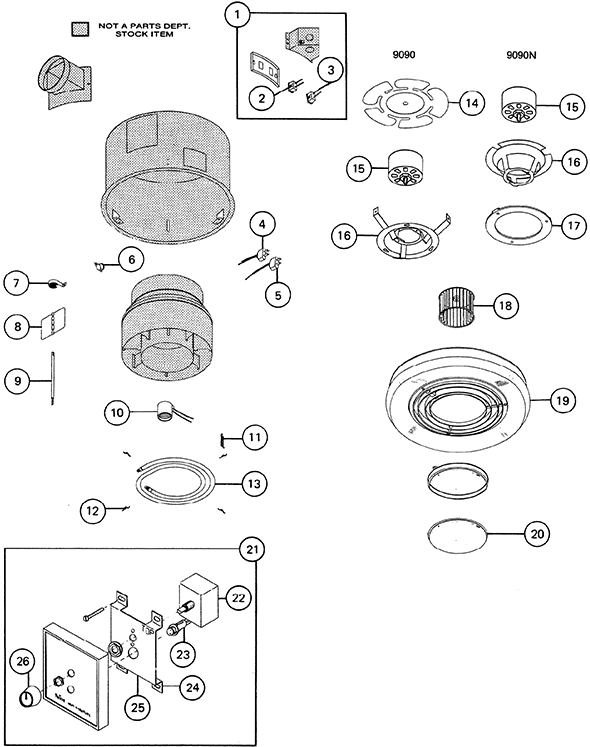

Schematic Image Zoomed
