Nutone 903 Ceiling Heater

Model: 903

Save Part Not Listed?
product name

Nutone 903

...
...
xx
Heating Element (907), Parts Used On Model 907 Are Identical To Above Listed Parts With The Exception Of Heating Element. BRO-10528
...
1
Bezel BRO-11331
...
2
Light Lens BRO-10458
...
3
Grille Assembly BRO-11324
...
4
Guard BRO-11321
...
5
Thermal Protector BRO-10379
...
6
Fan Blade Assembly BRO-10388
...
7
Motor (Alternate - 10365) BRO-11313
...
8
Outlet Box Cover BRO-10383
...
9
Outlet Box BRO-11320
...
10
Housing BRO-10365
...
11
Motor Bracket Assembly BRO-10386
...
12
Ceiling Mtg. Bracket BRO-10173
...
13
Heating Element BRO-10527
...
14
Sleeves Assembly BRO-11311
...
15
Element Hook BRO-11318
...
16
Element Spring BRO-11319
...
17
Lamp Socket BRO-1043310543
...
17
Lamp Socket BRO-10433-10543
...
18
Black - White Lamp Lead BRO-1062010623
...
18
Black - White Lamp Lead BRO-10620-10623
...
19
Lamp Socket Washer BRO-10488
...
20
Plate Switches And Light Assembly BRO-10575
...
21
Lens Retainer BRO-10397
...
22
Blade Grommet BRO-10661

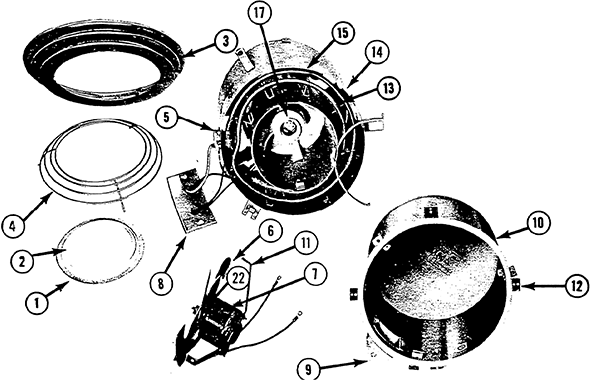

Schematic Image Zoomed
