product name

Nutone 9013NL Ceiling Heater

Model: 9013NL

Save Part Not Listed?
product name

Nutone 9013NL

...
...
1
Hanger Rod BRO-13306000
...
1
Hanger Rod BRO-13306-000
...
2
Ceiling Bracket - 3 Required BRO-10949-000
...
2
Ceiling Bracket - 3 Required BRO-10949000
...
3
Outlet Box BRO-35962-000
...
3
Outlet Box BRO-35962000
...
4
Outlet Box Cover BRO-35963000
...
4
Outlet Box Cover BRO-35963-000
...
5
Receptacle Hsg - Pin Assy BRO-0480A-000
...
5
Receptacle Hsg - Pin Assy BRO-0480A000
...
6
B Unit Assy. BRO-03175-000
...
6
B Unit Assy. BRO-03175000
...
7
Power Unit BRO-69355-000
...
7
Power Unit BRO-69355000
...
8
Motor BRO-57769-000
...
8
Motor BRO-57769000
...
9
Motor Mounting Plate BRO-57767000
...
9
Motor Mounting Plate BRO-57767-000
...
10
Blower Wheel BRO-66583000
...
10
Blower Wheel BRO-66583-000
...
11
Blower Wheel Housing BRO-64955-005
...
11
Blower Wheel Housing BRO-64955005
...
12
Heat Box Assy BRO-27544-000
...
12
Heat Box Assy BRO-27544000
...
13
Heat Element (1500 Watt) BRO-58120-000
...
13
Heat Element (1500 Watt) BRO-58120000
...
14
Thermal Protector BRO-27548-000
...
14
Thermal Protector BRO-27548000
...
15
Insulator Bushings - 2 Required BRO-69314-000
...
15
Insulator Bushings - 2 Required BRO-69314000
...
16
Element Supports - 5 Required BRO-27546-000
...
16
Element Supports - 5 Required BRO-27546000
...
17
Light Socket Assy BRO-30444000
...
17
Light Socket Assy BRO-30444-000
...
18
Night Lite Socket Assy. BRO-30156000
...
18
Night Lite Socket Assy. BRO-30156-000
...
19
Reflector BRO-35964206
...
19
Reflector BRO-35964-206
...
20
Grille BRO-56704000
...
20
Grille BRO-56704-000
...
21
Screws - 2 Required BRO-27603-000
...
21
Screws - 2 Required BRO-27603000
...
22
Mounting Brackets - Lens BRO-56706000
...
22
Mounting Brackets - Lens BRO-56706-000
...
23
Lens BRO-27561000
...
23
Lens BRO-27561-000
...
24
Screw Grille - 2 Required BRO-52858000
...
24
Screw Grille - 2 Required BRO-52858-000
...
25
Grille Assy. BRO-0474A000
...
25
Grille Assy. BRO-0474A-000
...
26
Switch Assy BRO-30162000
...
26
Switch Assy BRO-30162-000
...
27
Switch Single (20 Amp) BRO-85932-000
...
27
Switch Single (20 Amp) BRO-85932000
...
28
Switch Double (20 Amp) BRO-85921-000
...
28
Switch Double (20 Amp) BRO-85921000
...
29
Switch Plate BRO-85933-000
...
29
Switch Plate BRO-85933000

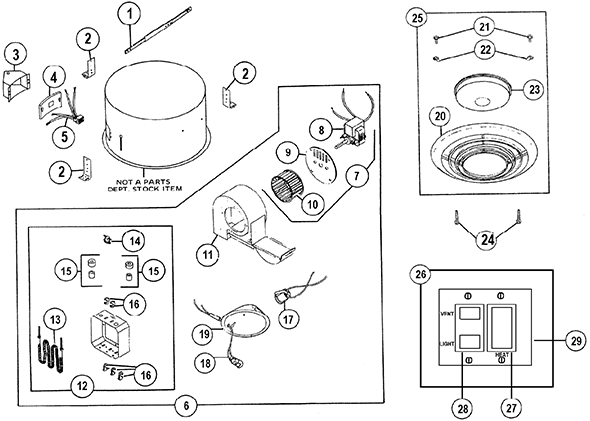

Schematic Image Zoomed
