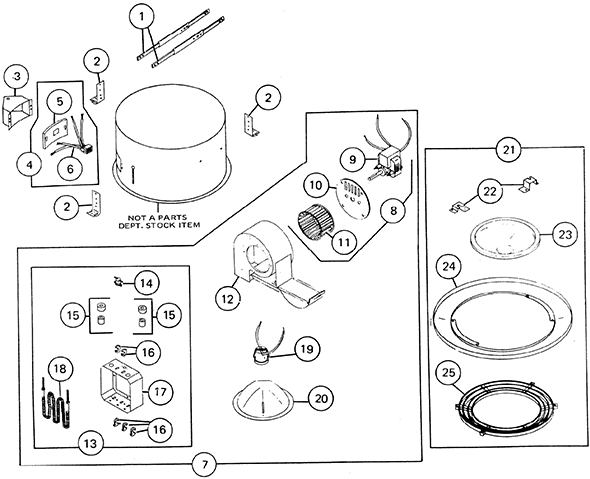

Nutone 9013N Ceiling Heater

Model: 9013N

Save Part Not Listed?
product name

Nutone 9013N

...
...
1
Hanger Bar Set BRO-13306000
...
1
Hanger Bar Set BRO-13306-000
...
2
Ceiling Bracket - 3 Required BRO-10949-000
...
2
Ceiling Bracket - 3 Required BRO-10949000
...
3
Outlet Box BRO-11320-005
...
3
Outlet Box BRO-11320005
...
4
Outlet Cover Box Assembly BRO-64940000
...
4
Outlet Cover Box Assembly BRO-64940-000
...
5
Outlet Box Cover BRO-27508-005
...
5
Outlet Box Cover BRO-27508005
...
6
Receptacle Housing - Pin Assembly BRO-64942-000
...
6
Receptacle Housing - Pin Assembly BRO-64942000
...
7
"B" Unit Assembly BRO-1119A-000
...
7
"B" Unit Assembly BRO-1119A000
...
8
Power Unit BRO-69352-000
...
8
Power Unit BRO-69352000
...
9
Motor, And Blower Wheel BRO-66582000
...
9
Motor, And Blower Wheel BRO-66582-000
...
10
Motor Mount Plate Assembly BRO-63654000
...
10
Motor Mount Plate Assembly BRO-63654-000
...
11
Blower Wheel, 3 3/4" X 2" BRO-66583-000
...
11
Blower Wheel, 3 3/4" X 2" BRO-66583000
...
12
Blower Housing Assembly BRO-64955-005
...
12
Blower Housing Assembly BRO-64955005
...
13
Heat Box Assembly BRO-27544-000
...
13
Heat Box Assembly BRO-27544000
...
14
Thermal Protector BRO-27548-000
...
14
Thermal Protector BRO-27548000
...
15
Insulator Bushing Set - 2 Required BRO-69314-000
...
15
Insulator Bushing Set - 2 Required BRO-69314000
...
16
Element Support - 5 Required BRO-27546-000
...
16
Element Support - 5 Required BRO-27546000
...
17
Heat Box BRO-27547-000
...
17
Heat Box BRO-27547000
...
18
Heating Element - 1500 Watt BRO-27593-000
...
18
Heating Element - 1500 Watt BRO-27593000
...
19
Light Socket Assembly BRO-64966-000
...
19
Light Socket Assembly BRO-64966000
...
20
Ref Lector BRO-27554-014
...
20
Ref Lector BRO-27554014
...
21
Guard Assembly BRO-27559-000
...
21
Guard Assembly BRO-27559000
...
22
Guard Mounting Bracket - 2 Required BRO-27562-038
...
22
Guard Mounting Bracket - 2 Required BRO-27562038
...
23
Lens BRO-27561-000
...
23
Lens BRO-27561000
...
24
Ceiling Ring BRO-27558-014
...
24
Ceiling Ring BRO-27558014
...
25
Guard BRO-27560-000
...
25
Guard BRO-27560000
