Nutone 9011 Ceiling Heater

Model: 9011

Save Part Not Listed?
product name

Nutone 9011

...
...
1
Hanger Bar Set BRO-13306000
...
1
Hanger Bar Set BRO-13306-000
...
2
Ceiling Mounting Bracket BRO-53194-000
...
2
Ceiling Mounting Bracket BRO-53194000
...
3
Outlet Box Cover BRO-27508-000
...
3
Outlet Box Cover BRO-27508000
...
4
Receptacle/Socket/Wire Assembly BRO-0477A000
...
4
Receptacle/Socket/Wire Assembly BRO-0477A-000
...
8
Motor Mount Hex BRO-19359-000
...
8
Motor Mount Hex BRO-19359000
...
9
Motor BRO-27540-SER
...
9
Motor BRO-27540SER
...
10
Motor Mount BRO-19360-000
...
10
Motor Mount BRO-19360000
...
11
Motor Support BRO-27252-000
...
11
Motor Support BRO-27252000
...
12
Heat Box Assembly BRO-27544000
...
12
Heat Box Assembly BRO-27544-000
...
13
Thermal Protector BRO-27548000
...
13
Thermal Protector BRO-27548-000
...
14
Insulator Bushing Set-(1) Male (1) Female BRO-69314000
...
14
Insulator Bushing Set (1) Male (1) Female BRO-69314-000
...
15
Element Support (1)-5 Required BRO-27546000
...
15
Element Support (1)-5 Required BRO-27546-000
...
16
Heating Element-1500W BRO-58120000
...
16
Heating Element-1500W BRO-58120-000
...
17
Light Socket Assembly BRO-69296-000
...
17
Light Socket Assembly BRO-69296000
...
18
Reflector BRO-27554-206
...
18
Reflector BRO-27554206
...
19
Guard Assembly BRO-56704-000
...
19
Guard Assembly BRO-56704000
...
20
Guard Mounting Bracket (1)-2 Required BRO-27562-038
...
20
Guard Mounting Bracket (1)-2 Required BRO-27562038
...
21
Lens BRO-27561000
...
21
Lens BRO-27561-000
...
22
Ceiling Ring -Silver BRO-27558-014
...
22
Ceiling Ring -Silver BRO-27558014
...
23
Guard BRO-0474A-000
...
23
Guard BRO-0474A000

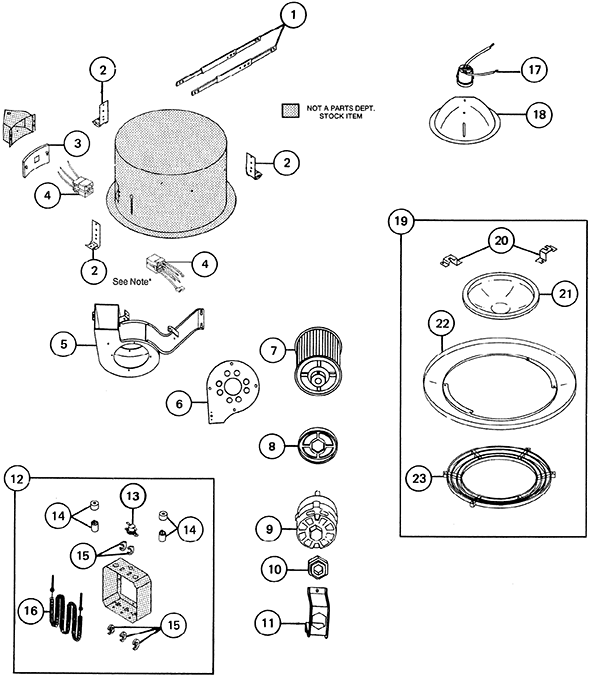

Schematic Image Zoomed
