Nutone 8833 Exhaust Fan

Model: 8833

Save Part Not Listed?
product name

Nutone 8833

...
...
1
Grille Panel BRO-23393014
...
1
Grille Panel BRO-23393-014
...
2
Grille Spring Set -4 BRO-69077-000
...
2
Grille Spring Set -4 BRO-69077000
...
3
Wing Nut 1/4 X 20 (Note: May Be Purchased Locally.) BRO-16133-000
...
3
Wing Nut 1/4 X 20 (Note: May Be Purchased Locally.) BRO-16133000
...
4
Grille BRO-23391014
...
4
Grille BRO-23391-014
...
5
Power Unit Assembly BRO-1314A000
...
5
Power Unit Assembly BRO-1314A-000
...
6
Motor Clamp Assembly BRO-22790000
...
6
Motor Clamp Assembly BRO-22790-000
...
7
Hex Motor Mount BRO-19360000
...
7
Hex Motor Mount BRO-19360-000
...
8
Motor 9/72 To Cur Rent Production BRO-23405SER
...
8
Motor 9/72 To Cur Rent Production BRO-23405-SER
...
8
Motor 7/69 To 9/72 Production BRO-23388-SER
...
8
Motor 7/69 To 9/72 Production BRO-23388SER
...
9
Venturi Ring BRO-23387005
...
9
Venturi Ring BRO-23387-005
...
10
Blower Wheel Assembly BRO-5900A000
...
10
Blower Wheel Assembly BRO-5900A-000
...
11
Receptacle BRO-10034000
...
11
Receptacle BRO-10034-000
...
12
Outlet Box Cover BRO-23383-005
...
12
Outlet Box Cover BRO-23383005
...
13
Rubber Bumper BRO-27538-000
...
13
Rubber Bumper BRO-27538000
...
14
Louver BRO-23219-000
...
14
Louver BRO-23219000

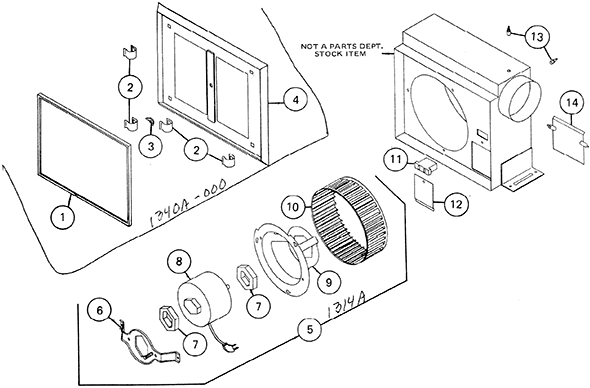

Schematic Image Zoomed
